Product Details:
|
| Product Name: | LS-450plus Book Cover Wrapping Machine And Paper Lining And Wrapping Machine | Colour: | Black & White & Blue |
|---|---|---|---|
| Type: | Paper Gluing Machine For Rigid Box | Working Speed: | 20-40 Pcs/min |
| Application: | Rigid Box/ Book Cover Making | Dimension(L*W*H):: | L5983*W3181*H2100 |
| Weight Of Machine: | 2106kg | Automatic Grade: | Automatic Gluing |
| Highlight: | paper lining machine 40pcs/min,ISO9001 paper lining machine,40pcs/min book cover wrapping machine |
||

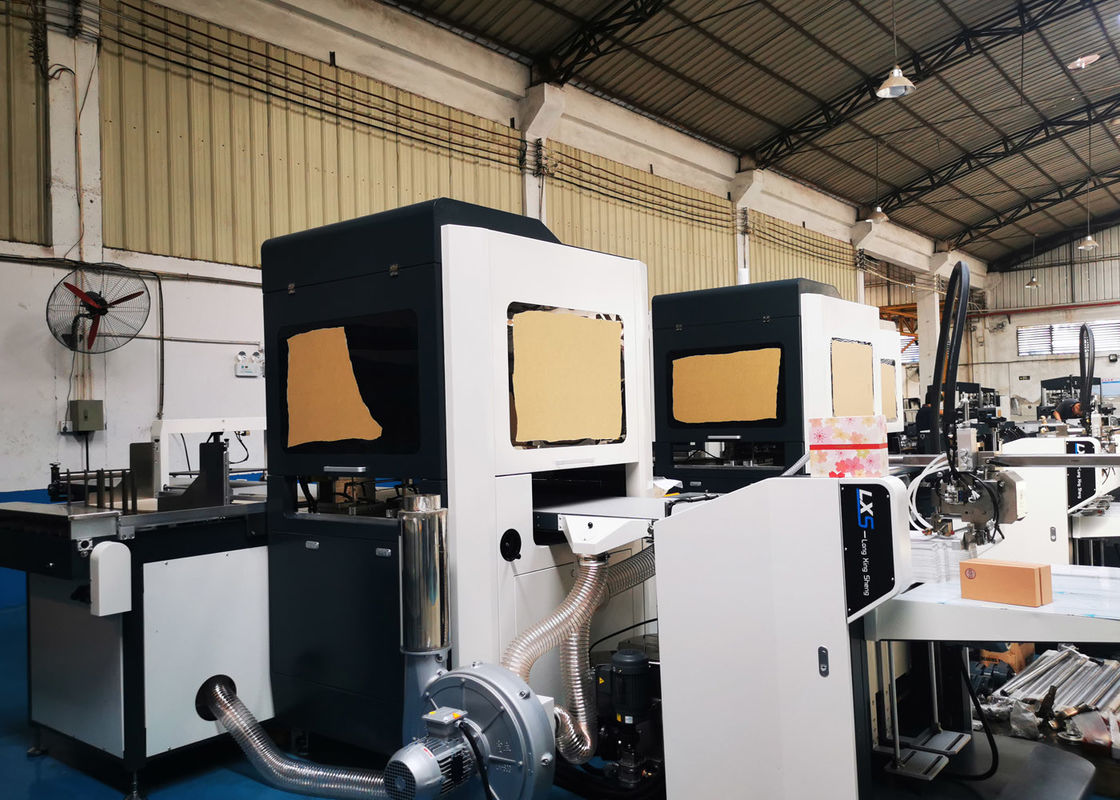

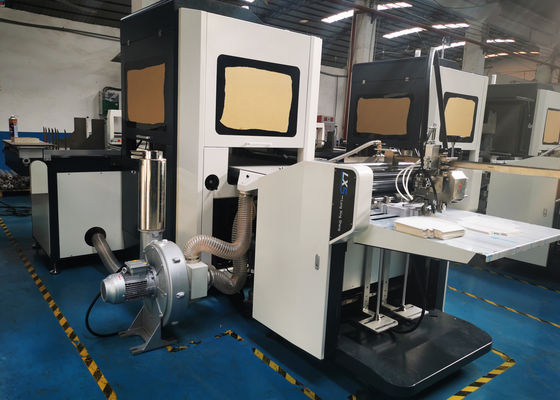

LS-450plus book cover wrapping machine and paper lining and wrapping machine
Introduction:
LS-450plus Box and book cover positioning machine is a important part for gift box production. the visual positioning is better than hydraulic positioning. which has much more stable and high positioning accuracy.

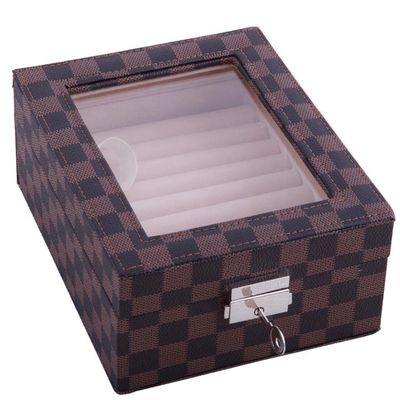

The fastest setting time of visual positioning part only need 7 minutes. And now, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc.
It is also able to positioning the book cover because it a multi-function packaging machine. some clients also use this machine for do paper lining.
7. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than twenty patents including pratice patents, including appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 14 years. Grooving machine series and rigid box forming series are our main products.
Our service:
After-sale service:
* Machine installation in clients's factory and provide training.
* Engineers are available to service machinery overseas.
* On-line service group support.
* Free machine parts replacement during one year warranty.
