Product Details:
|
| Certification: | CE, ISO | Product Name: | Automatic Paper Gluing Machine For Inner Box Positioning And Be One Of The Step For Rigid Box Making |
|---|---|---|---|
| Working Speed: | 15-35 Pcs/min | Type: | Rigid Box Gluing Machine & Positioning Machine |
| Dimension(L*W*H):: | L5983*W3181*H2101mm | Weight Of Machine: | 1852kg |
| High Light: | 35pcs/min Paper Gluing Machine,H2101mm Paper Gluing Machine,W3181mm Rigid Box Making machine |
||

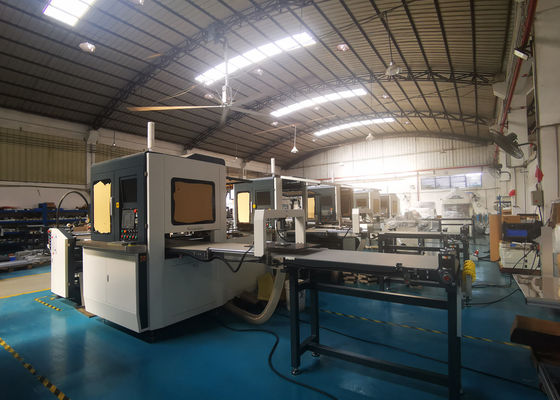

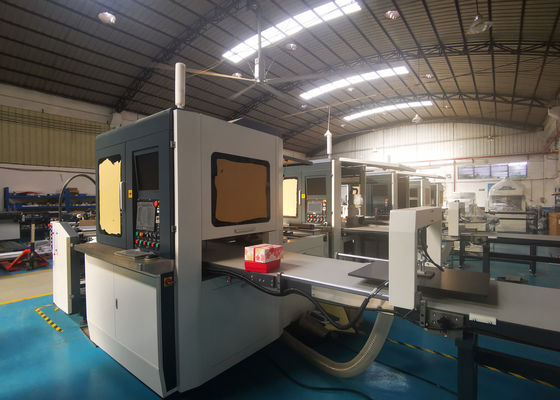

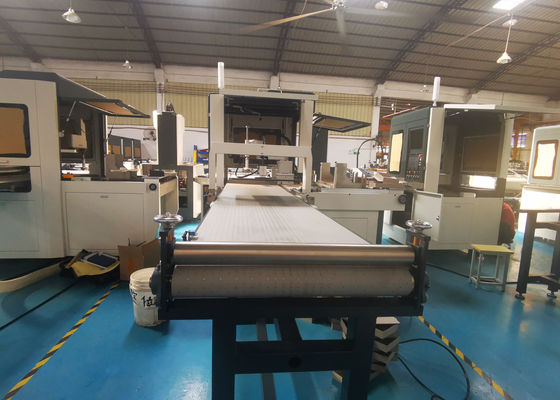

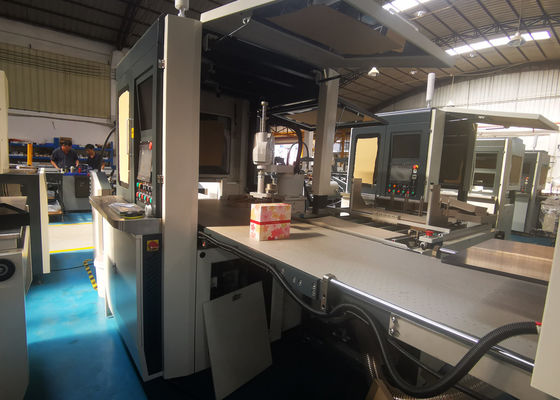

Automatic Paper Gluing Machine For Inner Box Positioning And Be One Of The Step For Rigid Box Making
Introduction:
Box Positioning Machine Which Is Used To Paste The Inner Box On The Paper To Make Mobile Phone Box For Different Box Sizes focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes. This machine can finish box paper gluing, box positioning (means paste the inner box in the glued paper automatically, which can save a lot of time and labor cost, also improve the positioning accuracy), it is really a useful box positioning machine.
Main page
Total: the total production quantity.
Current production: can be reset.
Washing machine: click on the washing machine ,the conveyor belt will rotate slowly, conveyor belt can be clean at this time.
Suspended: temporarily stop equipment running , except the roller.
Forming machine stand-alone/online: In the stopped state, when switching to online, the gluing machine is online with the positioning machine, and the gluing machine is started by the positioning machine button. When switching to stand-alone, the pasting machine is not controlled by the positioning machine.
Offline/online: the manipulator switches to offline operation state/online state.
Box size: can set the box size.
Status display: display the current working status of the machine. But when some institutions are operating, the corresponding blue box position lights up.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, and try our best to "Simply box making". Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
