Product Details:
|
| Product Name: | Luxury Boxes & High Quality Boxes Gluing And Positioning Machine | Working Speed: | 15-35 Pcs/min |
|---|---|---|---|
| Type: | Set Up Box Gluing Machine & Positioning Machine | Dimension(L*W*H):: | L5981*W3182*H2103mm |
| Weight Of Machine: | 1853kg | Color: | White & Black |
| High Light: | shoe box making machine Gluing,shoe box making machine L5981mm,packing box making machine W3182mm |
||

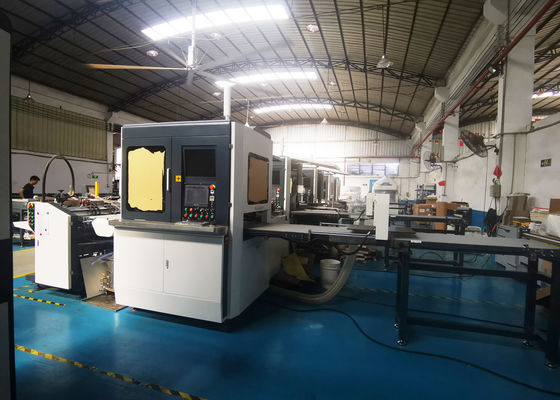

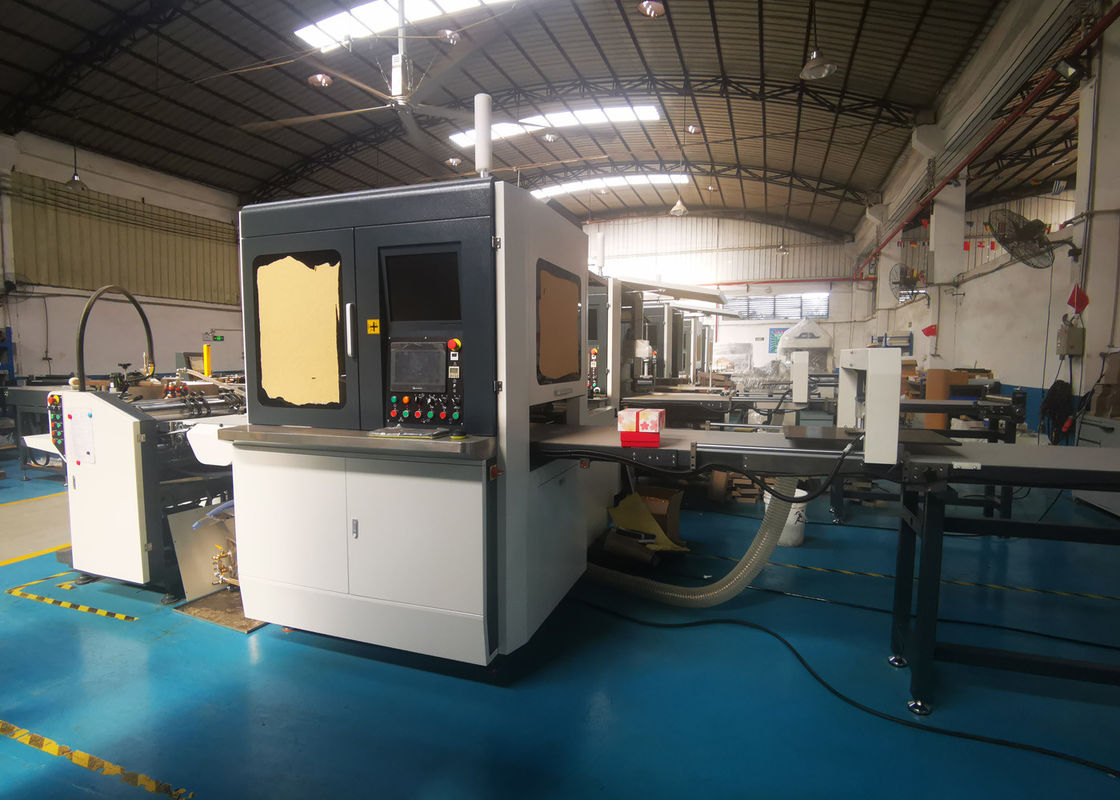

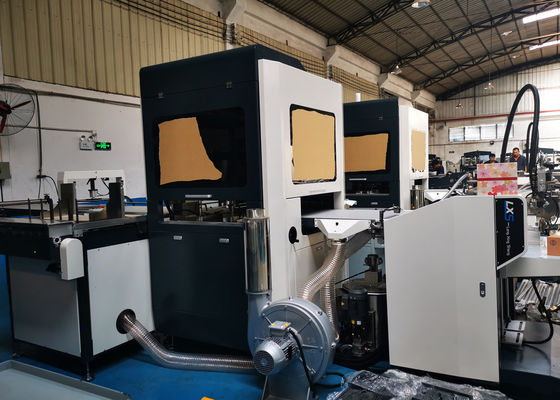

Luxury Boxes & High Quality Boxes Gluing And Positioning Machine
Introduction:
Box Positioning Machine Which Is Used To Paste The Inner Box On The Paper To Make Mobile Phone Box For Different Box Sizes focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes. This machine can finish box paper gluing, box positioning (means paste the inner box in the glued paper automatically, which can save a lot of time and labor cost, also improve the positioning accuracy), it is really a useful box positioning machine.
Main page of touch screen
Total: the total production quantity
Current production: can be reset
Washing machine: click on the washing machine ,the conveyor belt will rotate slowly, conveyor belt can be clean at this time.
Suspended: temporarily stop equipment running , except the rubber roller.
Molding machine: single machine operating alone
Manipulator: single manipulator operation alone
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, and try our best to "Simply box making". Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
Installation details
