Product Details:
|
| Products Name: | Rigid Square Box Packing Box Making Machine With Good-Looking Performance And Good Function | Box Length: | 85-600mm |
|---|---|---|---|
| Box Width: | 69-400mm | Box Height: | 20-120mm |
| Positioning Accuracy: | 0.03mm | Paper Thickness: | 100-350gsm |
| Cardboard Thickness: | 0.9-4mm | After-sales Service Provided: | Video Technical Support,Field Installation,Free Spare Parts |
| High Light: | packing box making machine 0.03mm,packing box making machine 4mm,Rigid Box Making Machine 0.9mm |
||

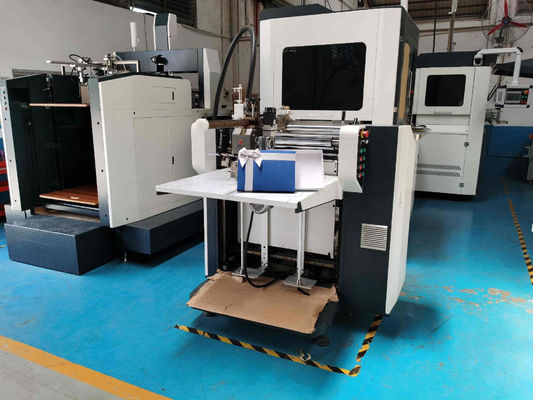

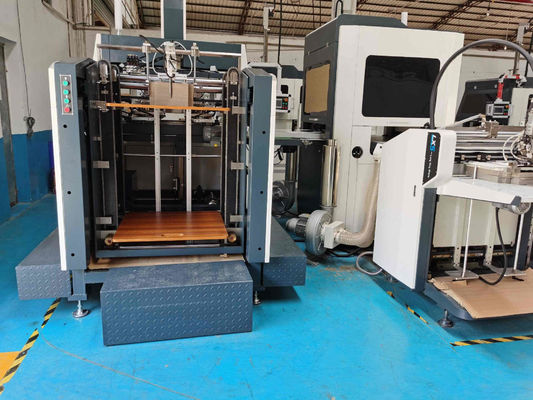

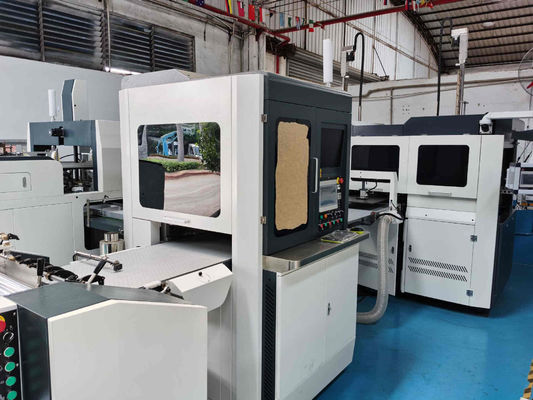

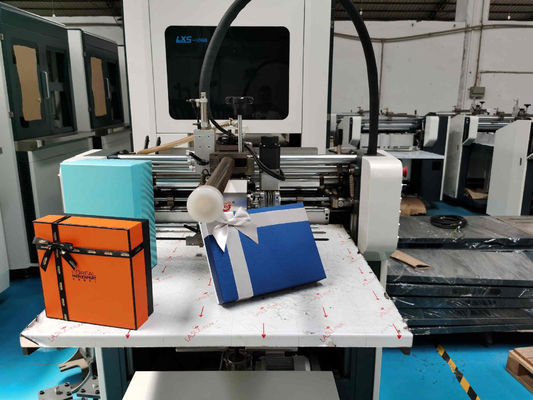

Rigid Square Box Packing Box Making Machine With Good-Looking Performance And Good Function
How to make a box with the latest machine? Fast, accuracy, easy setting, the LS-1246D will bring it to you.
Automatic setting in the forming station make the whole machine setting time reducing grealty. Whole line including the automatic box corner pasting, paper feeding&gluing, Visual box positioning, dual box forming stations and air pressing at one time.
It is suitable for customer seeking for smart high speed rigid box making machine. This is an sutiable machine for rigid box factory who has long and stable but changable orders. Suitable for daily orders more than 10K.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
