Product Details:
|
| Product Name: | Automatic Multi-Functional Candy Wine Hard Rigid Box Making Machine For Wrapping | Max Paper Size: | L700*W400mm |
|---|---|---|---|
| Min Paper Size: | L180*W120mm | Max Cardboard Size: | L730*W510mm |
| Min Cardboard Size: | L100*W140mm | Box Length: | 60-600mm |
| Box Width: | 60-500mm | Box Height: | 1-130mm |
| Weight: | 5300Kg | Processing Type: | Box Type Machine |
| Highlight: | W120mm candy Rigid Box Making Machine,Rigid Box Making Machine For Wrapping,400mm automatic box making machine |
||

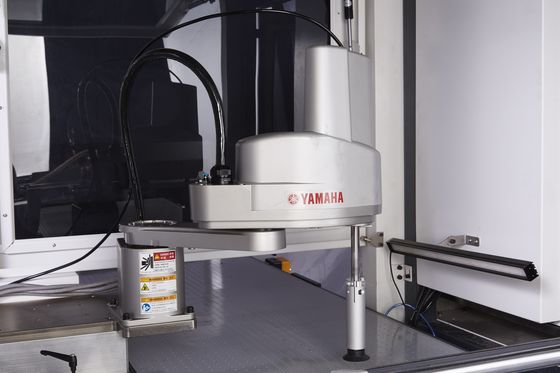

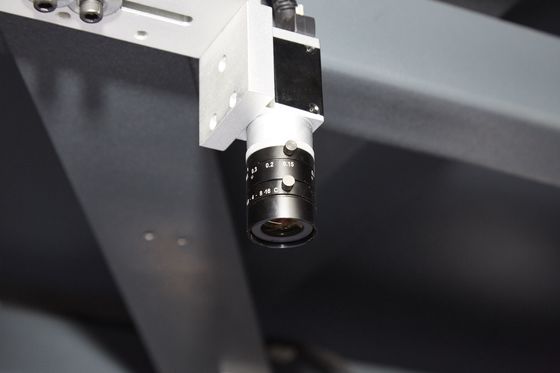

This machine has applied visual positioning for easy and high accurate positioning. This machine are suitable for the orders more than 1000 pcs. It has a big wide size working range. Max box length is 600mm, max box height is 400mm, max height is 130mm. LS-1246G are OK to positioning the hardcover as it equipped with case feeding device.
Max feeding cardboard pcs are five pcs.
LS-1246G Automatic multi-functional rigid box machine is an convenient for factory has box and hardcover orders. It including the box corner pasting, paper gluing, box&case positioning, box wraping and pressing at one time.
The LS-1246G is best choice for rigid box, gift box book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
