Product Details:
|
| Products Name: | Automatic Smart Rigid Gift Wedding Box Making Machine With Dual Box Wrapping System | Max Paper Size: | L700*W500mm |
|---|---|---|---|
| Min Paper Size: | L20*W170mm | Max Cardboard Size: | L710*W510mm |
| Min Cardboard Size: | L130*W120mm | Box Length: | 90-570mm |
| Box Width: | 65-380mm | Weight: | 4240KG |
| Dimension(l*w*h): | 6600x4200x4000 Mm | ||
| Highlight: | L700mm gift box making machine,W500mm gift box making machine,L700mm sweet box making machine |
||
It including the box corner pasting, paper gluing, box positioning, box wraping and pressing at one time. This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty.

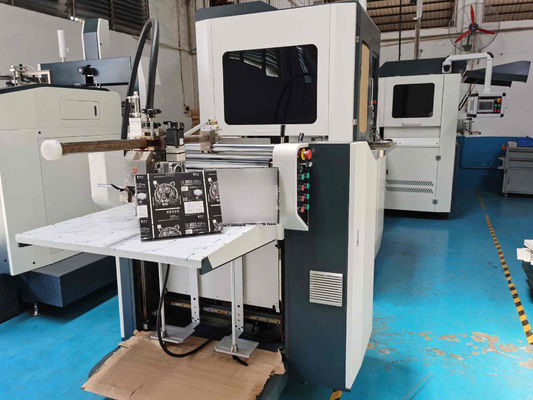

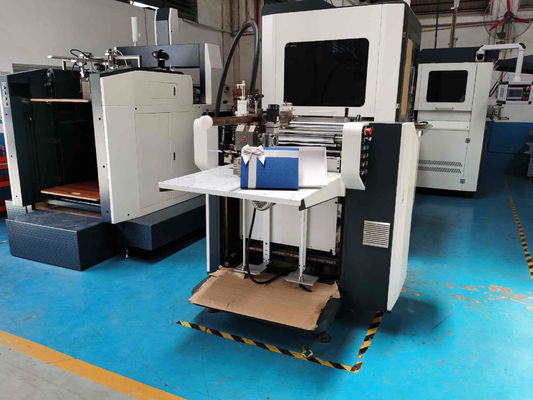

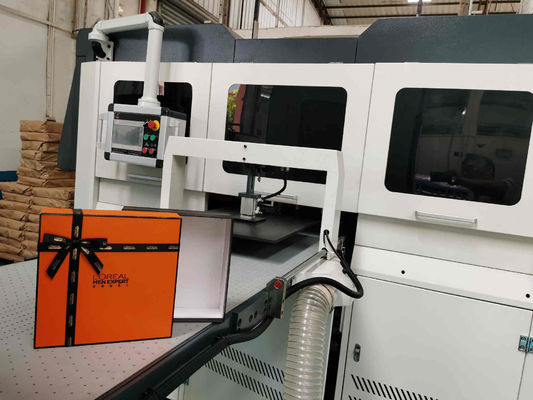

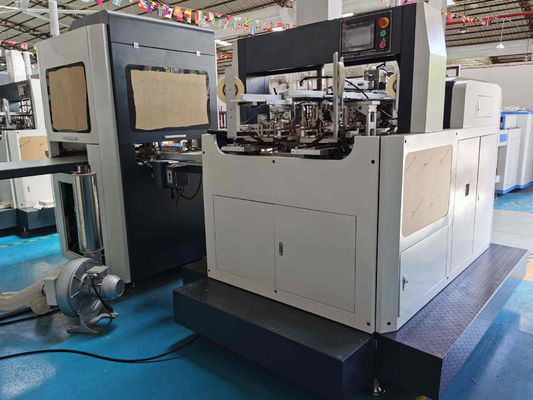

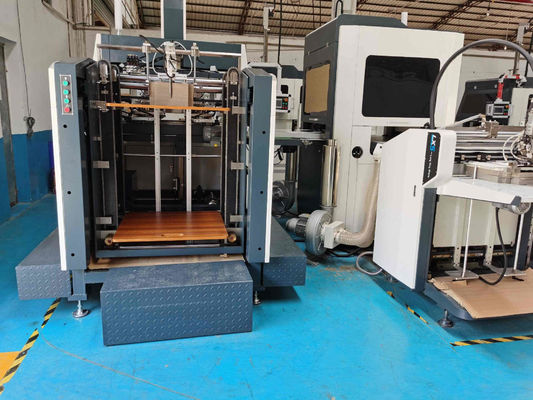

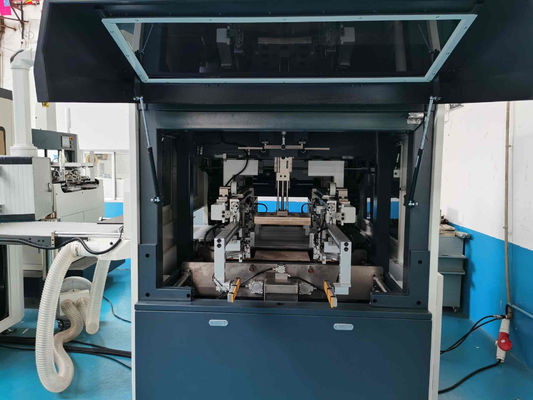

LS-1246D Automatic smart rigid gift wedding box making machine with dual box wrapping system is an ideal machine for customer who has changable orders.
Whole line setting time in 45-60 minutes. So that can meet different order quantity request. What`s more, it has a wide working range. Max box length is 600mm, max box height is 400mm, max height is 120mm, it can help you gain more orders with this smart setting machine.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
