Product Details:
|
| Products Name: | Automatic Smart High Speed Rigid Wedding Gift Candy Preium Box Making Machine With Visual Positioning | Box Length: | 100-600mm |
|---|---|---|---|
| Box Width: | 60-400mm | Box Height: | 16-120mm |
| Paper Thickness: | 90-300gsm | Cardboard Thickness: | 0.9-3mm |
| Warranty: | One Years | Condition: | New |
| High Light: | Rigid box manufacturing machine,Wedding box manufacturing machine,300gsm automatic box making machine |
||
What is the setting time of one fully automatic rigid box making machine you need? 3 hours, 2 hours or short time. we have machine the LS-1246D can producing the rigid box with shorter setting time.

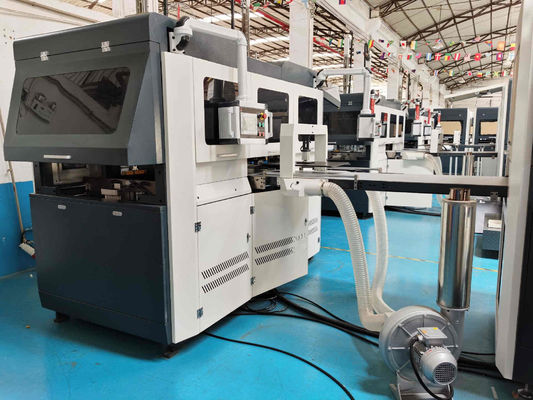

The LS-1246D is a good machine in the rigid box production with high speed. To ensure the best appearance of box, it will equipped with an automatic air pressing machine to combine with its high speed.
It is good machine to customer, it can running in high speed 25-45 pcs/min, middle speed 15-25 pcs/min. As dual folding stations can only running in one to save energy. It also has desined for a wider range box production with intelligent setting. The max box length is 600mm, max width is 400mm, Max height is 120mm. Whole line has applied the visual positioning technology in rigid box making. Ensure its high working speed and accuracy, Whole working speed can be adjusted in one button. The intelligent setting has ensured it can change new size in the shortest time.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
