Product Details:
|
| Product Name: | Small Box Packing Machine & Paper Box Packing Machine For Cell Phone Boxes | Type: | Rigid Box Packaging Machine |
|---|---|---|---|
| Working Speed: | 15-36 Pcs/min | Dimension(L*W*H):: | L5980*W3180*H2106 |
| Weight Of Machine: | 1854kg | Certification: | CE, ISO |
Small Box Packing Machine & Paper Box Packing Machine For Cell Phone Boxes
Introduction:

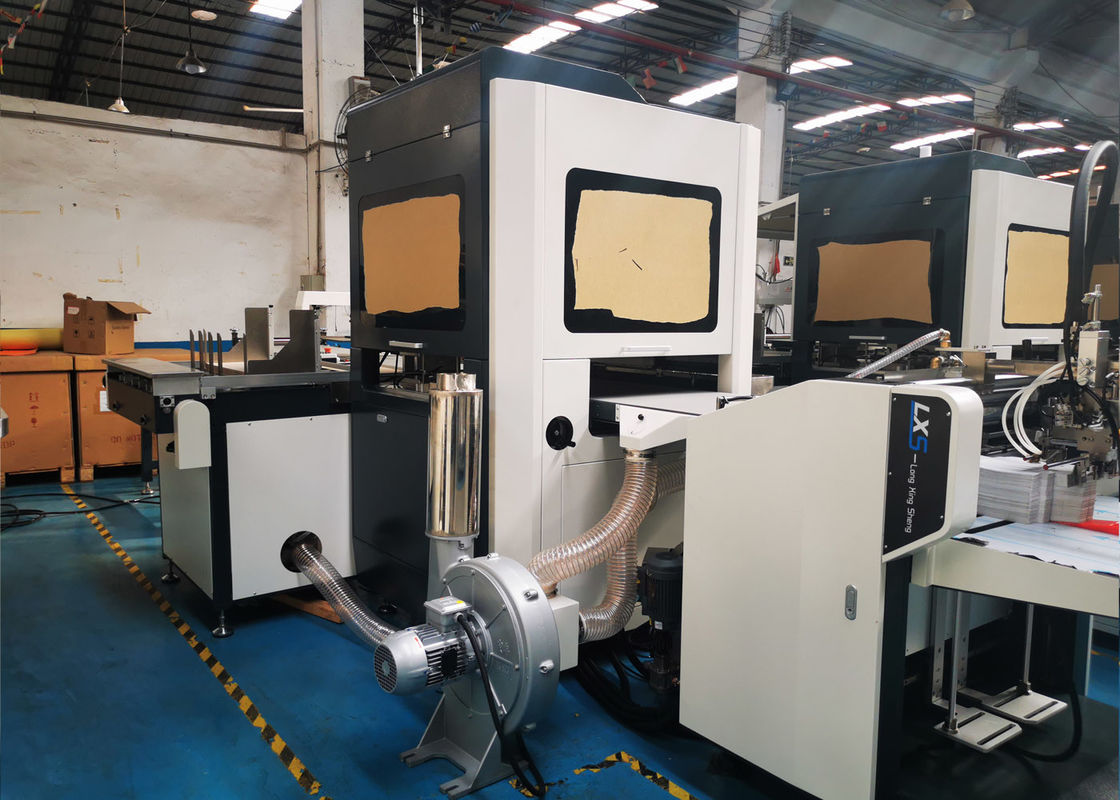

LS-450B Automatic Vision Box Positioning Machine is designed and developed by our own R&D Department is the ideal equipment for making high-end rigid box. It is specialized in the mass production of various kinds of rigid boxes, such as sweet boxes, gift boxes, perfume boxes, mobile phone boxes, jewelry boxes, tea boxes, cosmetics boxes, etc. Its reasonable design and stable performance improve the work efficiency and the quality of the products greatly.

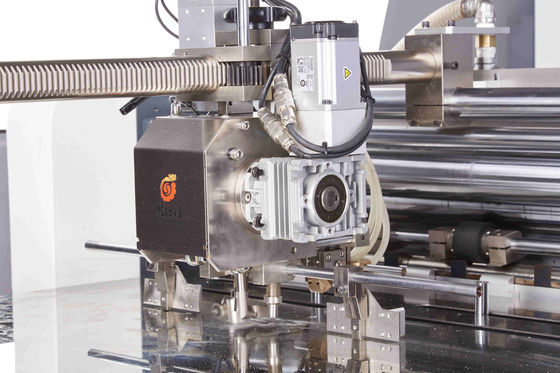

6. Panasonic Servo motor feeding system.

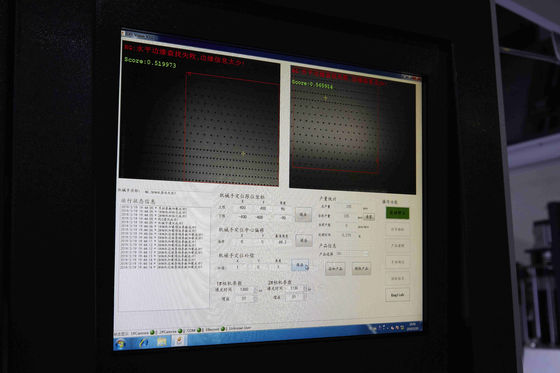

Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can handle different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
We hold "professional, focus, customer first" as our operating principle, and try our best to "Simply box making". Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
