Product Details:
|
| Product Name: | Automatic Gluing Machine & Paper Box Packing Machine With Short Setting Time | Type: | Rigid Box Packaging Machine |
|---|---|---|---|
| Colour: | Black & White | Working Speed: | 15-38 Pcs/min |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Application: | Rigid Box/hard Cover/Case Positioning | Dimension(L*W*H):: | L5980*W3180*H2100 |
| Weight Of Machine: | 1850kg | Certification: | CE, ISO |
Automatic Gluing Machine & Paper Box Packing Machine With Short Setting Time
Introduction:

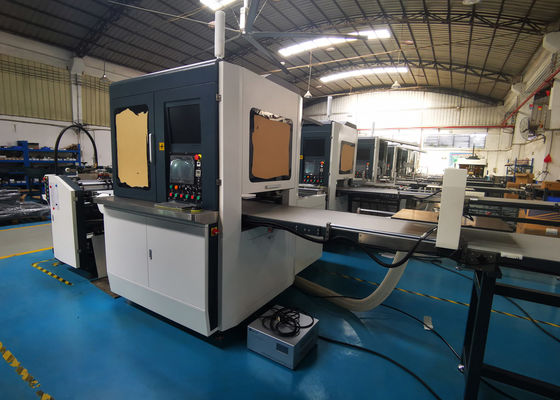

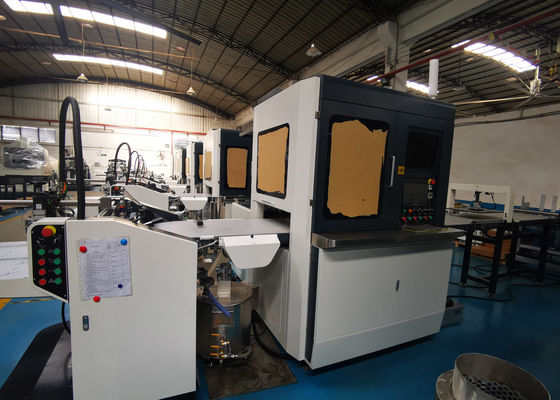

LS-450B Box visual positioning machine focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.

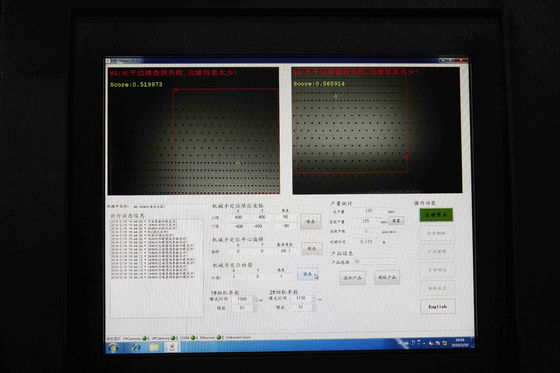

Products photography: first choose Camera 1 and click dynamic photography until the product show in the picture. Adjust exposure value and appreciation according to the brightness. Usually adjust there is clearly color comparison between camera product picture and conveyor belt.
Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can handle different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "simplify box making" as our operating principle and keep improving our quantity, service to make sure provide better box making solutions to every customer. Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem.
