Product Details:
|
| Product Name: | Paper Gluing Machine And Box Double Pressing Machine With High Working Speed | Working Speed: | 15-33 Pcs/min |
|---|---|---|---|
| Automatic Grade: | Automatic Gluing And Pasting | Dimension(L*W*H):: | L5980*W3187*H2100 |
| Weight Of Machine: | 1855kg | Certification: | CE, ISO |
| Highlight: | Mobile V Groove Cutter Machine,33pcs/min V Groove Cutter Machine,Mobile Positioning box Gluing Machine |
||

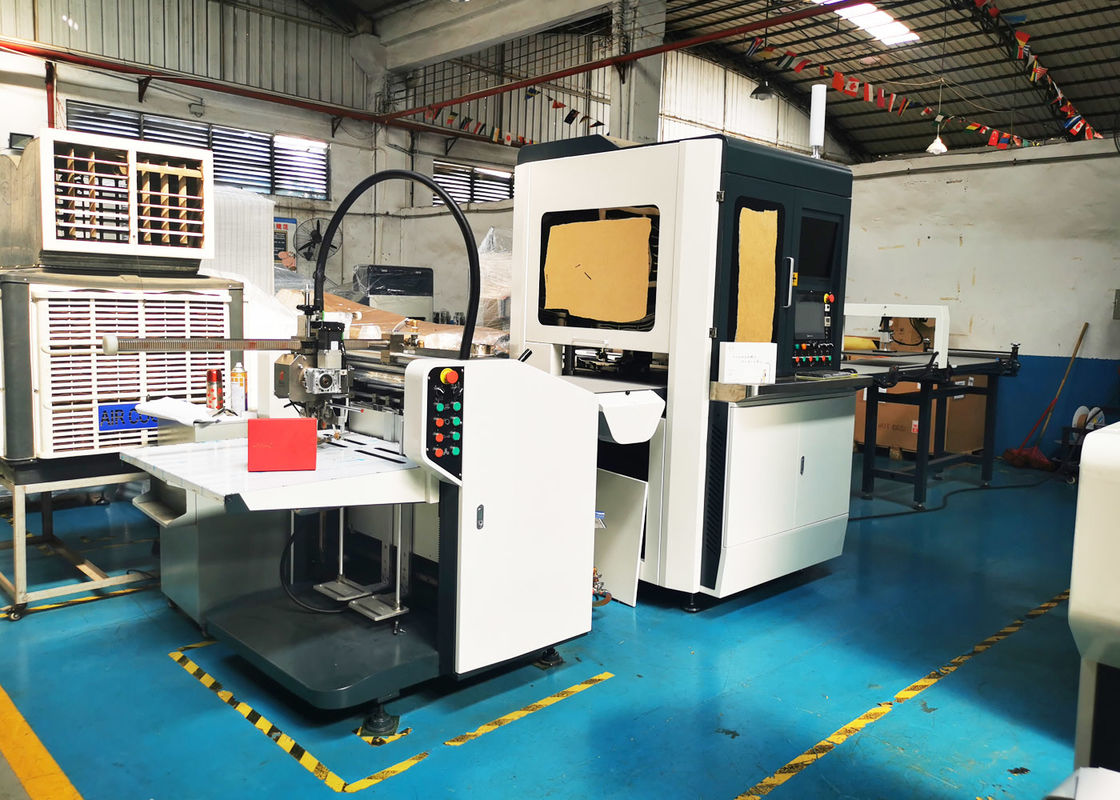

Paper Gluing Machine And Box Double Pressing Machine With High Working Speed
Introduction:
LS-450B is a visual box positioning machine, it is widely used to make rigid box. The main function of this machine is to glue paper, and paste the box and glued paper together. This machine is widely use for making gift box, cellphone box and mobile phone boxes, etc.
The function of this machine is including:
1 Cover paper feeding
2 Cover paper gluing,
3 Box feeding system
4 Box positioning
5 Second pressing

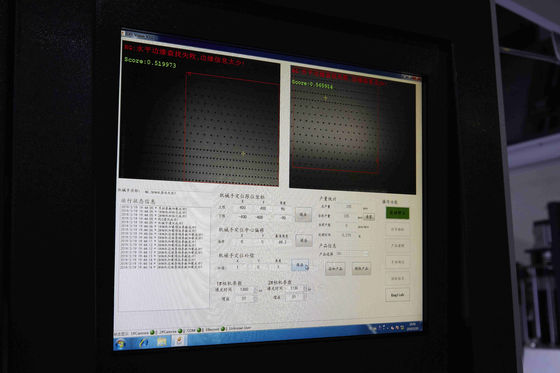

Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can glue different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Longxingsheng Machinery is one the leader and professional packaging machinery manufacturer in Dongguan, China.
We focus on manufacturing rigid box making machine & cardboard grooving machine for producing all kinds of cardboard boxes, such as hard cover case, luxury boxes, jewelry boxes, gift boxes, sweet boxes, shoes boxes, watch boxes, high-end boxes and etc.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem which isn't caused by wrong operation, customers share us some videos or pictures so that our engineer will check the exact problem and assist to solve the problems.
