Product Details:
|
| Product Name: | Book Cover And Paper Lining Machine For Rigid Box Making & Case Making | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Warranty: | 1 Year |
| Working Speed: | 15-40 Pcs/min | Application: | Rigid Box/hard Cover/Case Positioning |
| Dimension(L*W*H):: | L5980*W3180*H2100 | Weight Of Machine: | 2100kg |
| Automatic Grade: | Automatic | Power: | 380V |
| Highlight: | Automatic Paper Lining Machine,Paper Lining Machine 40pcs/min,40pcs/min Book Cover making Machine |
||

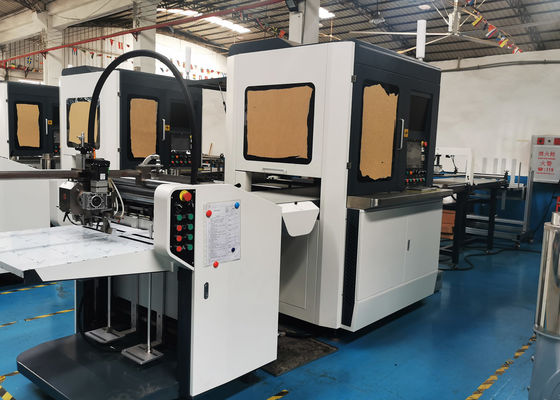

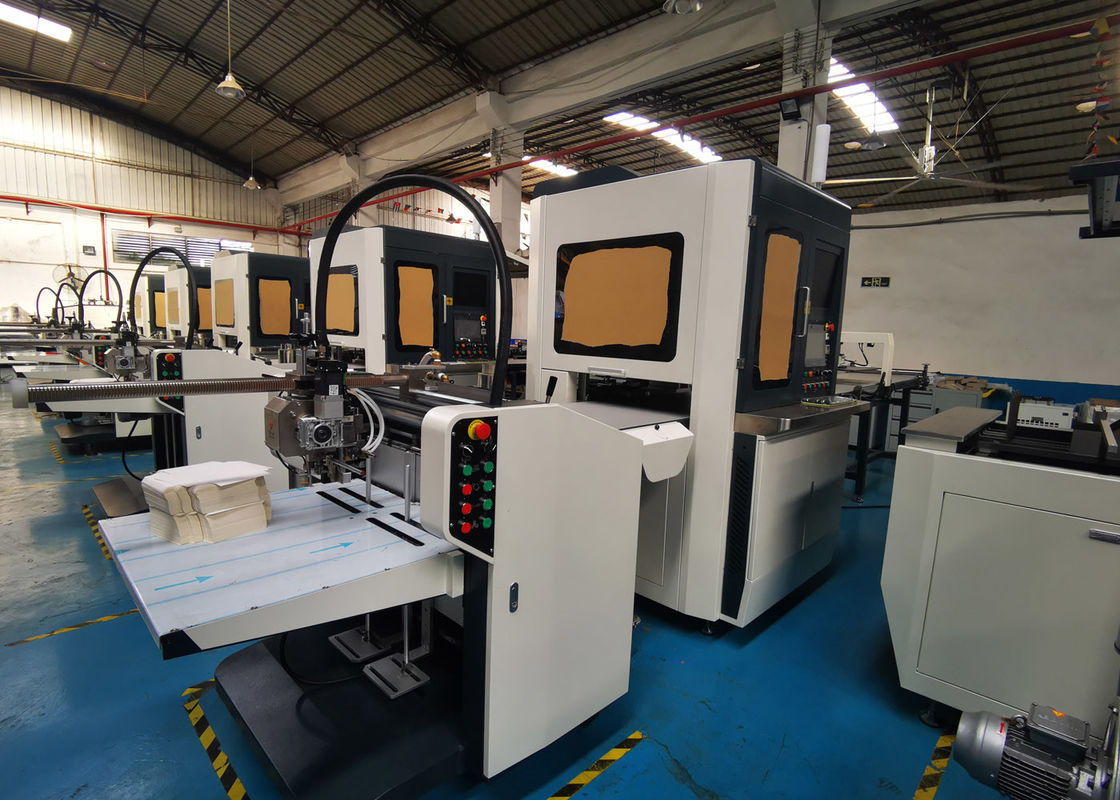

Book Cover And Paper Lining Machine For Rigid Box Making & Case Making
Introduction:
LS-450plus Box and book cover positioning machine is a core parts for rigid box production. It can also connect with the corner pasting machine, so the inner box will feed automatically and improve the efficiency.
Box guider is to accurately stop the box blank completed by the corner at the picking position of the robot, and wait for the robot to grab the box.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
