Product Details:
|
| Product Name: | Automatic Positioning Machine For Game Board Making, Hardcover Making, Rigid Box Making | Working Speed: | 15-40 Pcs/min |
|---|---|---|---|
| Type: | Multi-Function Box Positioning Machine | Dimension(L*W*H):: | L5980*W3187*H2109 |
| Weight Of Machine: | 2113kg | Automatic Grade: | Automatic |
| Highlight: | Automatic Positioning Machine,Positioning Machine for Game Board,L5980mm Rigid Box machine |
||

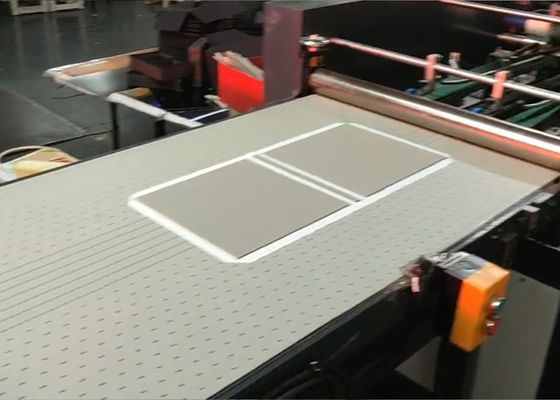

Automatic Positioning Machine For Game Board Making, Hardcover Making, Rigid Box Making
Rigid box making machine_compressed.pdf
Introduction:

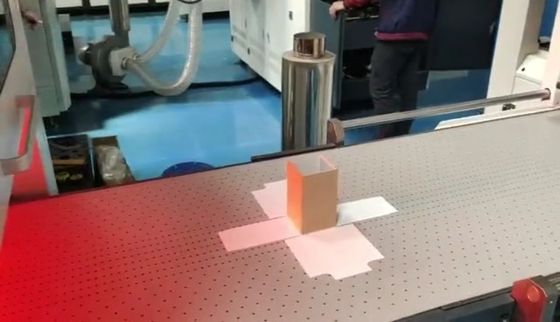

Automatic Positioning Machine For Game Board Making, Hard cover Making, Rigid Box Making, which is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.

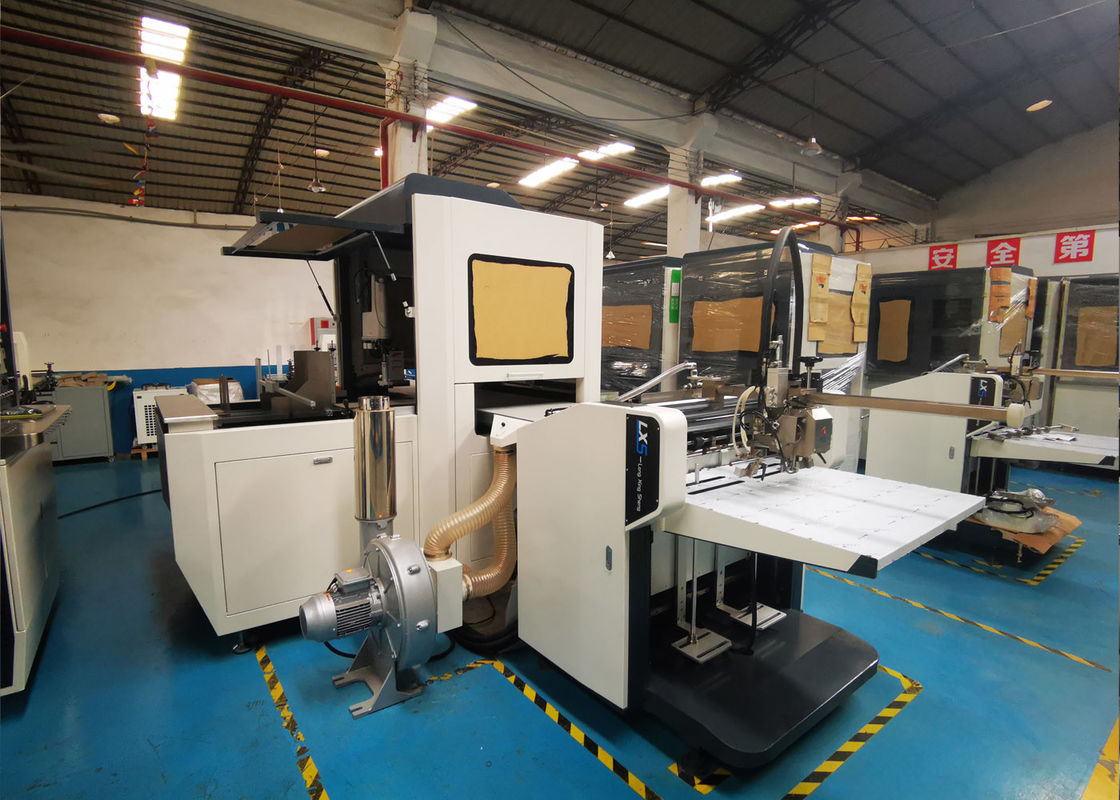

LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.
When the paper is glued, the drum must be turned on and then the glue is drawn. The glue will flow out from the glue outlet above the drum. First adjust the "paper roller" and the paper feed roller in sequence according to the thickness of the paper. Then adjust the position of the scraper according to the size of the paper. Generally, the scraper is at least one in the middle of the paper and one on each side. If the number of scrapers is too small, the paper may not be completely scraped off.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
Welcome to discuss more details with us.
