Product Details:
|
| Product Name: | Rigid Box Packing Machine For Book Case Making And Rigid Box Making | Application: | Rigid Box/hard Cover/Case Positioning And Gluing |
|---|---|---|---|
| Power: | 380V | Dimension(L*W*H):: | L5984*W3185*H2100 |
| Weight Of Machine: | 2114kg | Automatic Grade: | Automatic |
| Highlight: | H2100mm Rigid Box Packing Machine,W3185mm Rigid Box Packing Machine,H2100mm Book Cover making machine |
||

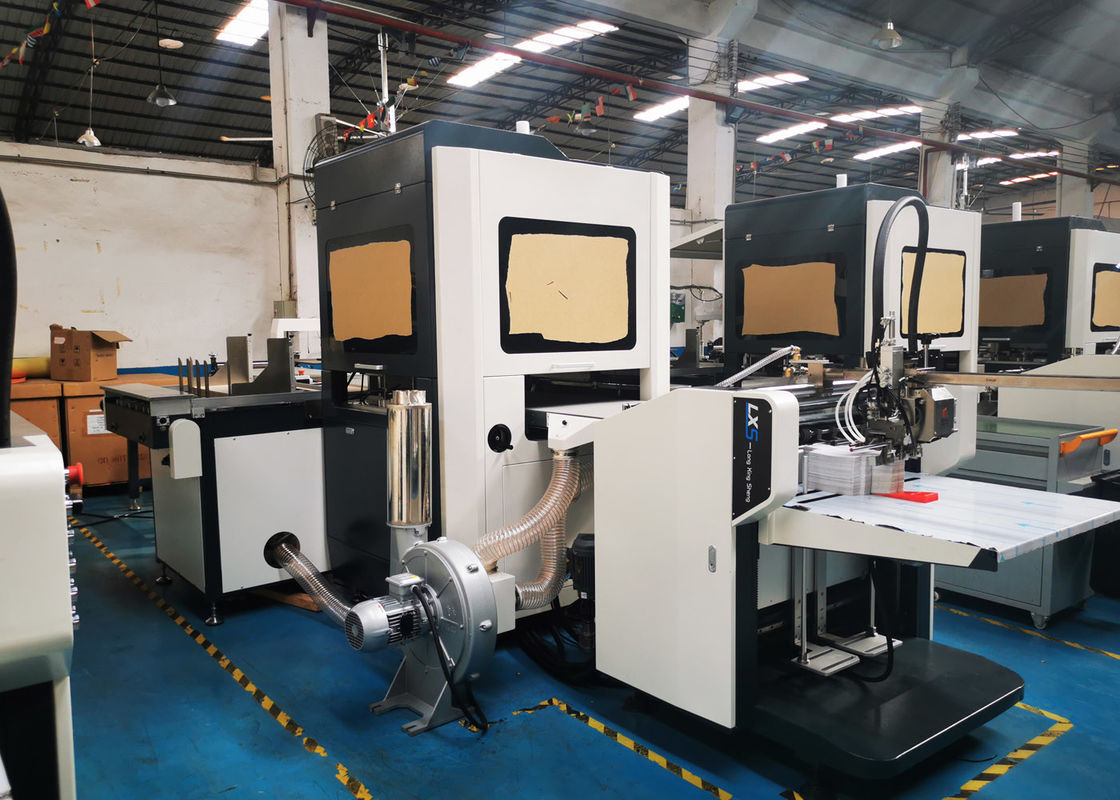

Rigid Box Packing Machine For Book Case Making And Rigid Box Making
Introduction:
Box Packing Machine For Rigid Box Making, Book Cover Making And Paper Lining. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.

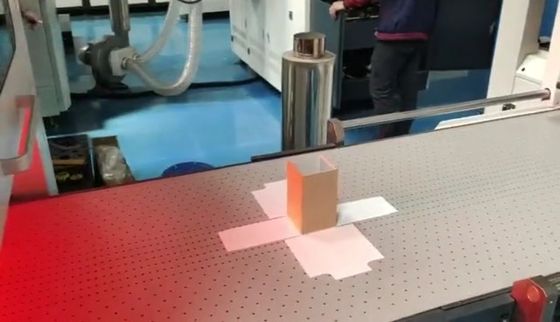

LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.
Gluing system
When the paper is glued, the drum must be turned on and then the glue is drawn. The glue will flow out from the glue outlet above the drum. First adjust the "paper roller" and the paper feed roller in sequence according to the thickness of the paper. Then adjust the position of the scraper according to the size of the paper. Generally, the scraper is at least one in the middle of the paper and one on each side. If the number of scrapers is too small, the paper may not be completely scraped off
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |

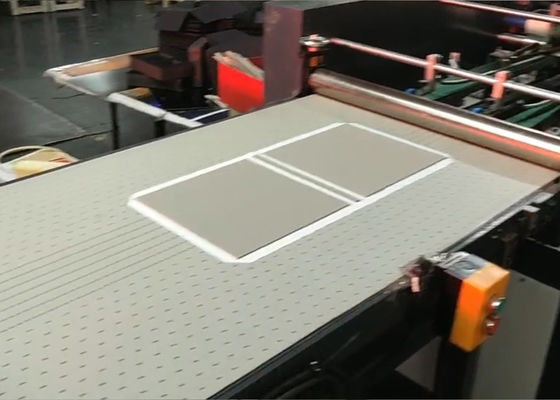

| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
