Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Magic Hat Box Making Machine Box Wrapping System | Max Paper Size: | L700*W600mm |
|---|---|---|---|
| Min Paper Size: | L130*W100mm | Max Cardboard Size: | L660*W560mm |
| Min Cardboard Size: | L150*W100mm | Box Length: | 80-500mm |
| Box Width: | 60-300mm | Box Height: | 15-130mm |
| Working Speed: | 6-25 Pcs/min | ||
| Highlight: | rigid Packaging Box Making Machine,Packaging Box Making Machine 80mm |
||
This sensor is a rubber roll paper alarm sensor. The number of paper alarms is set on the feeder parameter setting page of the visual screen. Loosen the countersunk screw of the "conveyor sensor seat", turn the "link" to make the sensor to the proper position of the tissue paper, and tighten the countersunk screw.
If the adjustment of the sensor does not reach a suitable position, you can still pass Loosen the "headless screw" and turn the "adjusting plate" to adjust, making sure to sense the various colors of tissue. Before the machine runs normally, press the "SET" button of the sensor.
When the machine is running normally, if it does not detect the number of facial papers and reaches the alarm number set by itself, the machine will automatically alarm.

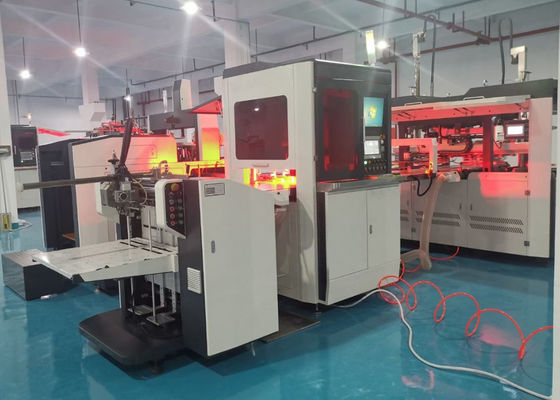

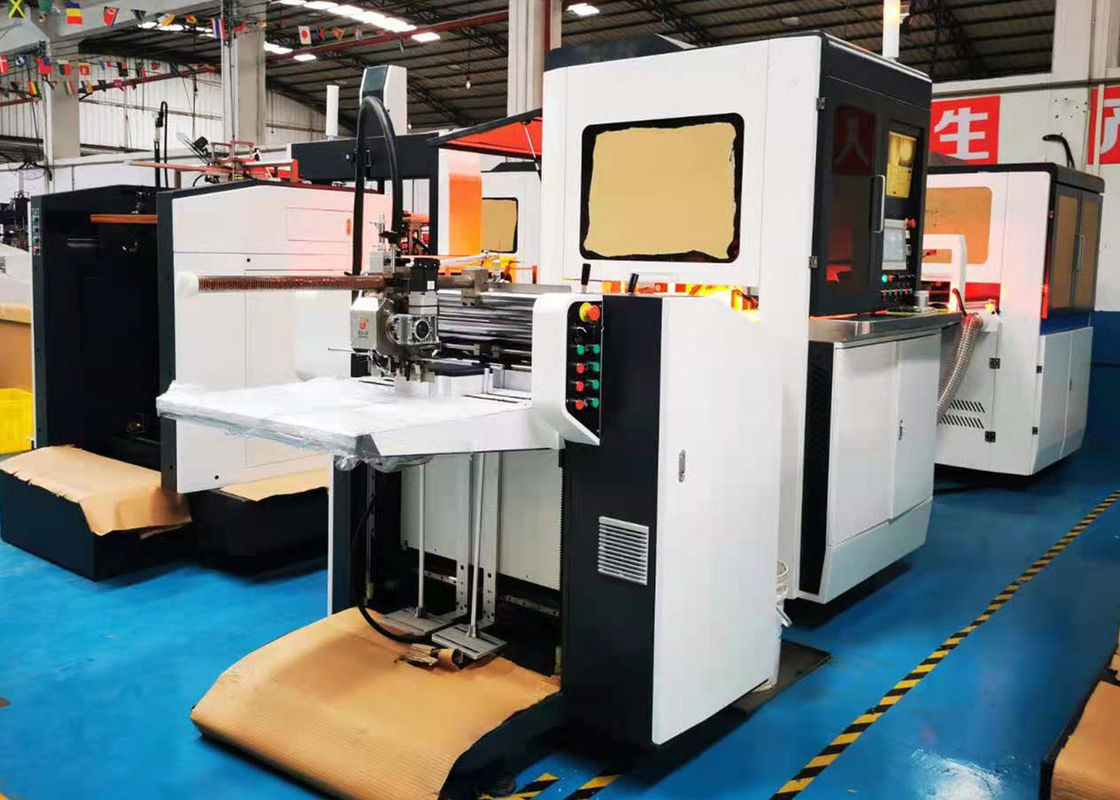

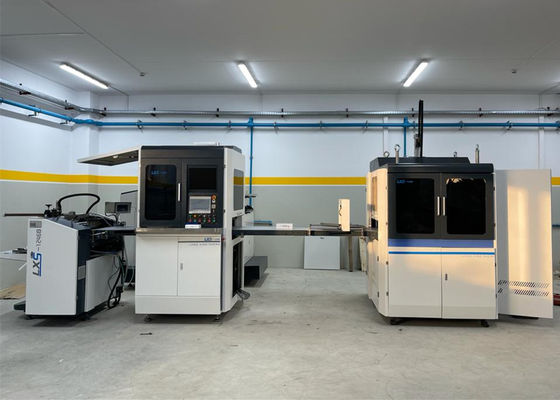

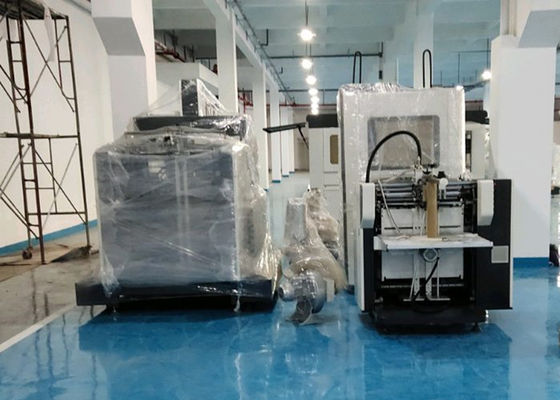

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
