Product Details:
|
| Product Name: | Autoamtic Shoes Box Paper Gluing Machine And Positioning Machine For Rigid Box Production | Application: | Rigid Box Paper Gluing |
|---|---|---|---|
| Colour: | Black & White | Dimension(L*W*H):: | L5981*W3184*H2112mm |
| Weight Of Machine: | 2110kg | Working Speed: | 15-37pcs/min |
| Highlight: | Rigid box Paper Gluing Machine,37pcs/min Paper Gluing Machine,37pcs/min Shoe Box Positioning Machine |
||

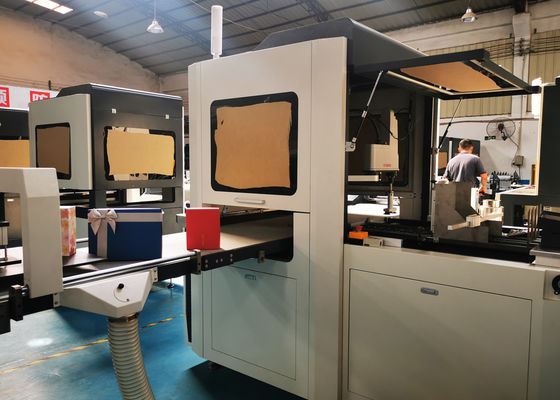

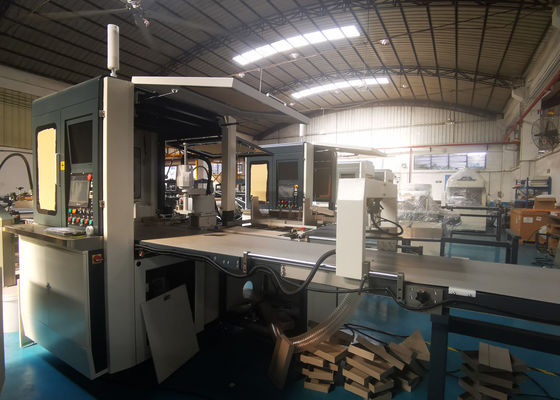

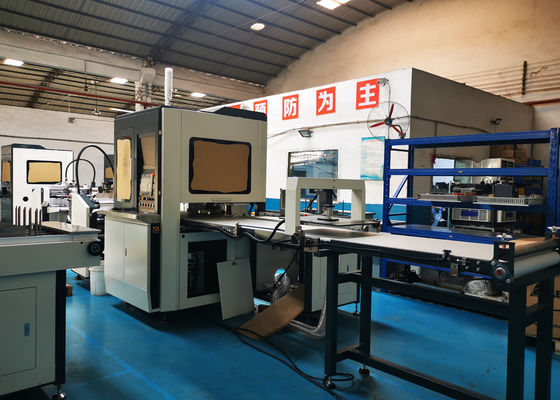

Autoamtic Shoes Box Paper Gluing Machine And Positioning Machine For Rigid Box Production
Introduction:
Autoamtic Shoes Box Paper Gluing Machine And Positioning Machine For Rigid Box Production, this machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
Size setting:
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006. As a packaging technology company, we own 120 workers, more than 10 years experience, ISO & CE certificated, less than two hours reach Guangzhou or Shenzhen port, this is how we keep good quality and competitive prices for global valued customers.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Details discussion.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
