Product Details:
|
| Working Speed: | 35m/min | Max Size: | 1000*600mm |
|---|---|---|---|
| Min Size: | 140*120mm | Carton Paper Thickness: | 500-800g/m² |
| Cardboard Thickness: | 0.8~4mm | Machine Dimension: | L2050*W1520*H1350mm |
| Machine Weight: | 1250kg | ||
| Highlight: | V Shape cardboard grooving machine,600mm cardboard grooving machine,1000mm v groove machine |
||

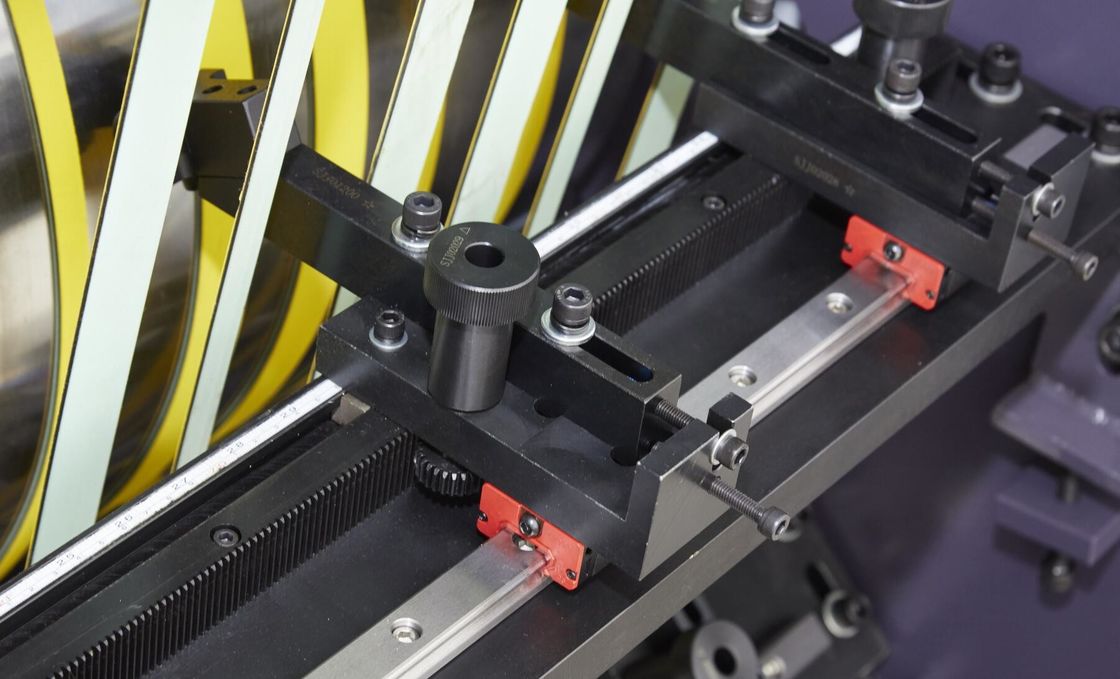

V shape High Speed cardboard grooving machine
Sharpen the blades with the grinder: the sharp side of the blades should be grinded by the grinding wheel instead of the flat side. Fix the knife and wind the screw to make the clamping piece tight, and then push it to make the blade touch the grinding wheel, turn on the power and grind the knife. After that, put every pair of the blades together (flat side against), sharp them a little flat on the tips)
| Product name | The Newest Automatic Cardboard Grooving Machine For Cell Phone Case |
|
Machine model
|
LS-1200B
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
40m/min(100-200pcs/min)
|
|
Cardboard size
|
140*120-1000*600mm
|
|
Cardboard thickness
|
0.8-4mm
|
|
Motor power
|
2Kw/380v
|
|
Machine dimension
|
L2050*W1320*H1350mm
|
|
Machine weight
|
1250kg
|
