Product Details:
|
| Name: | LS-T430 Automatic Paper Box Corner Pasting Machine For Gift And Tea Box Making | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Warranty: | 1 Year |
| Working Speed: | <75 Pcs/min | Driven Type: | Electric & Pneumatic |
| Dimension(L*W*H):: | L1650*W1300*H1960mm | Weight Of Machine: | 920kg |
| Automatic Grade: | Automatic | ||
| Highlight: | Automatic Paper Box Corner Pasting Machine,2KW Box Corner Pasting Machine,2KW Automatic Pasting Machine |
||

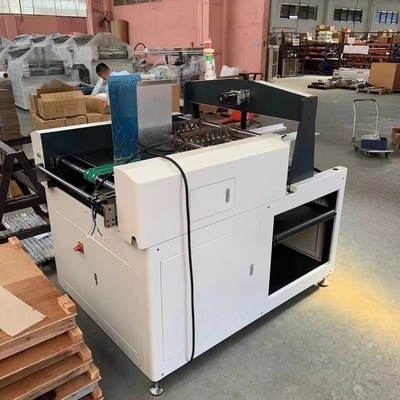

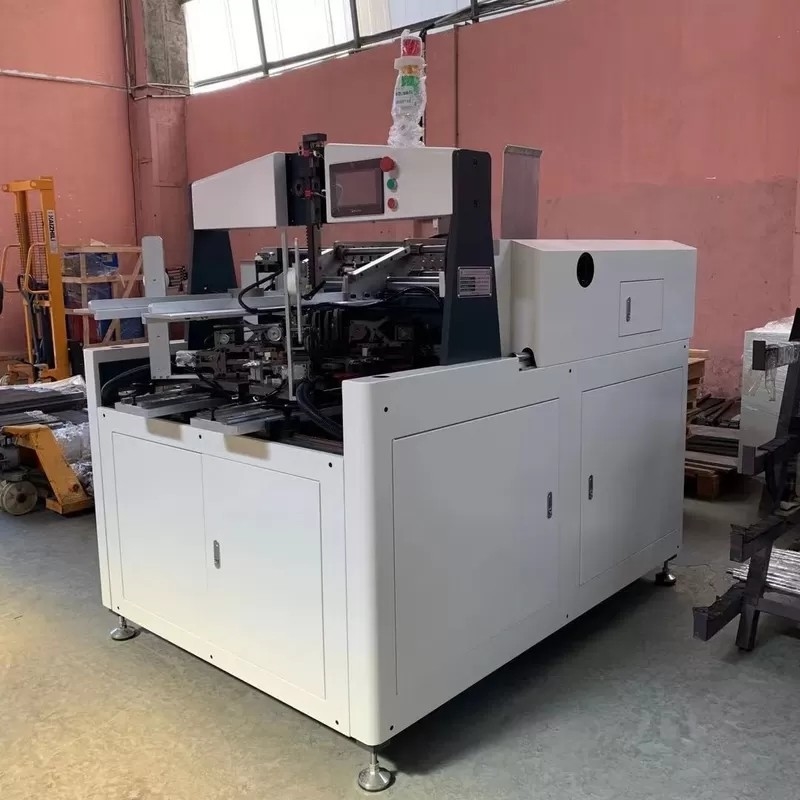

LS-T430 Automatic Paper Box Corner Pasting Machine For Gift And Tea Box Making
Introduction:
LS-T430 Automatic Craft Tape Four Corner Pasting Machine For Rigid Box Making is applied to pasting the four corners of die cutting cardboard and v-slots grooving cardboard. This machine use belt feeding way to convey coardboard to punching area. Shorten feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The max working speed is 75 pcs/min, it able to paste normal rigid box and slant side box, paste twice for high box. Whole machine is 1650*1300*1960mm. Small and easy to be movement. It is suitable to combine with semi-automatic rigid box making line.
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
FAQ
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3. What is the production time while placing order?---- Within 7-30 workdays.
4. Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
6. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
7. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
Best and regards,
Longxingjian Intelligent Equipment Co.,Ltd
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
