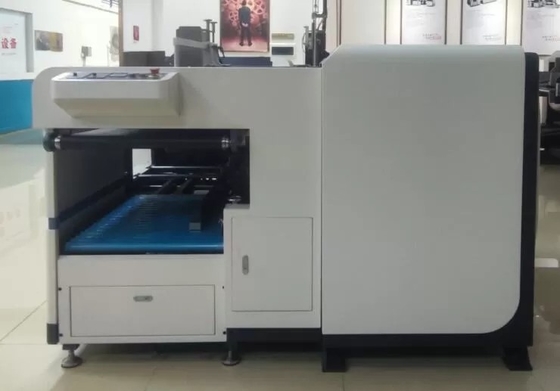

Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board

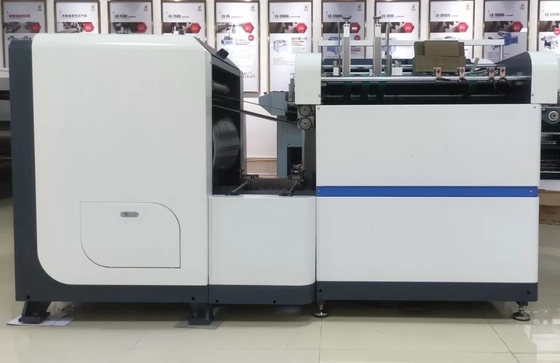

Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board

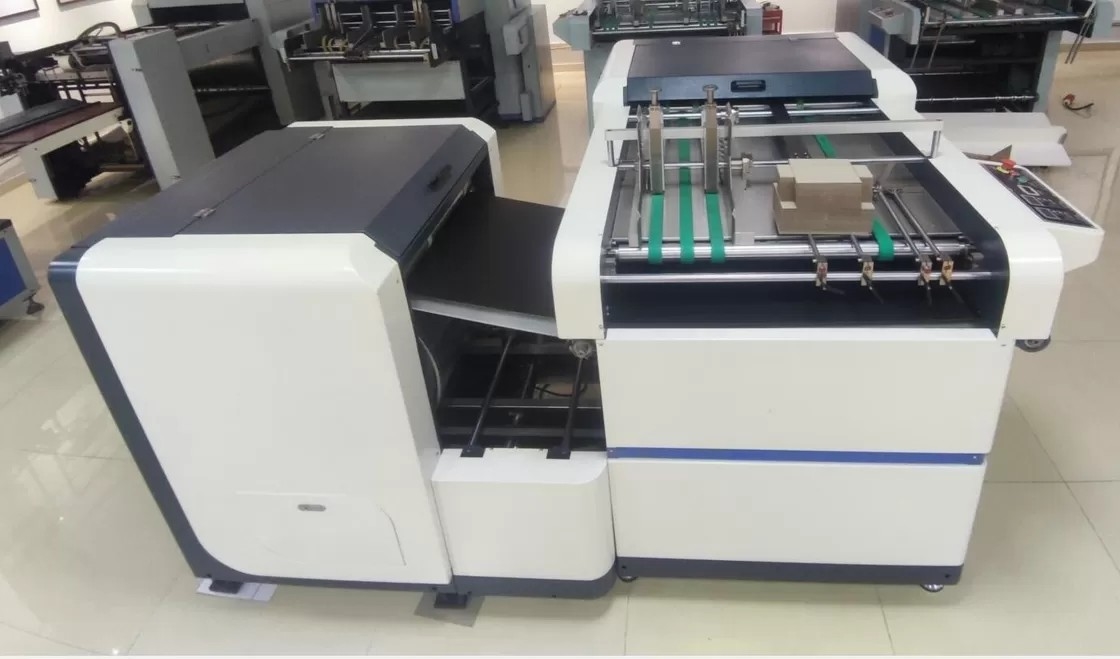

Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board
Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board

Large Image :  Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE, ISO9000
Model Number: LS-1200C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 24800-30000 /set
Packaging Details: wooden case
Delivery Time: 20-60 days
Supply Ability: 10-20 set per month

Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board

Description
Automatic Grade: Automatic Working Speed: 30m/min
Cardboard Thickness: 1~4mm Machine Dimension: L2680*W2600*H1350mm
Machine Weight: 1650kg Color: White
Highlight:

3x3 Slot V Groove Cutter Machine

,

MDF Board V Groove Cutter Machine

,

Dual Direction MDF Board Grooving Machine

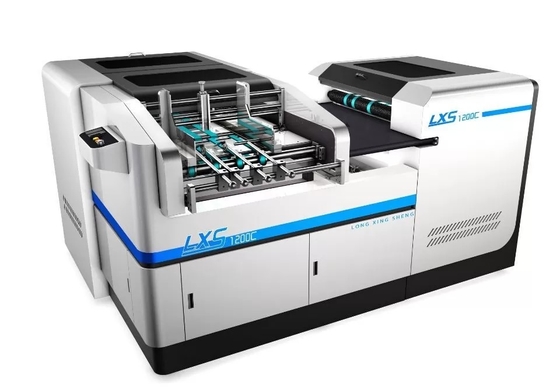

THE 1200C Fully automatic Dual-direction Hardcover V Groove Cutter Machine board grooving machine



Product Application

This model is our new research mahcine in our company. It can handle cardboard, MDF. It also can groove two directions of cardboard which be finished at one time. Equipped with special knife grinder,easy operating and setting. We can groove cardboard 30m/min.



Type
LS-1200C
Quantity of groove at time
3*3 slots
Working speed
30m/min
Cardboard specification
120*120-600*500mm
Cardboard thickness
1~4mm
Motor power
4kw/380v
Machine dimension
L2750*W2200*H1480mm
Groove angle
80°-140°
Machine weight
1650kg



Main Features

1) Simple structure in linear type ,easy in installation and maintation.



2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



3) High efficiency: The speed of manual feeding can be 15000pcs/8 hours.(20×20cm).



4) High accuracy of grooving: This machine applies new conveying system, the belt will conveyor the cardboard into the grooving section by pressing the cardboard against a drum with 60cm in diameter, which ensure the high accuracy and high speed.



5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.



Dual Direction 3x3 Slot V Groove Cutter Machine For MDF Board 0

Result of grooving cardboard
