Product Details:
|
| Name: | LS-T430 Automatic Paper Box Corner Pasting Machine For Gift And Tea Box Making | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Warranty: | 1 Year |
| Working Speed: | <75 Pcs/min | Driven Type: | Electric & Pneumatic |
| Dimension(L*W*H):: | L1650*W1300*H1960mm | Weight Of Machine: | 920kg |
| Automatic Grade: | Automatic |

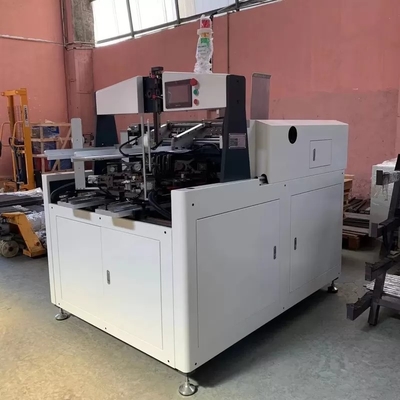

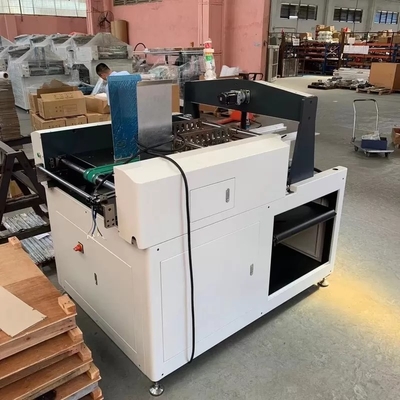

LS-T430 Automatic Paper Box Corner Pasting Machine For Gift And Tea Box Making
Introduction:
LS-T430 automatic corner glue machine is used for gluing the four corners of square boxes. The machine uses a belt feed to send cartons to the shredding area. Increase working speed by shortening feed intervals. Works great with animal glue, plastic tape, and duct tape. The highest working speed is 75 tablets/min. It can be connected with ordinary hard case and mileage case, and the vertical case can be connected twice.
1. Automatic PLC control
2. Belt-type mounting plate
3. Non-stop palletizing equipment conversion
4. Automatic alarm and stop after feeding
5. Quick and easy product and board replacement
6. Automatic alarm when glue runs out
7. Automatic strip feeding, cutting, corner welding and four corner welding can be done simultaneously
8. The box can be fixed in two parts, according to the type of top case
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
FAQ
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3. What is the production time while placing order?---- Within 7-30 workdays.
4. Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
6. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
7. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
