Product Details:
|
| Product Name: | Automatical Rigid Cake Cardboard Arts Box Making Machine With Box And Case Function | Max Cardboard Size: | L760*W560mm |
|---|---|---|---|
| Min Cardboard Size: | L120*W100mm | Box Length: | 100-600mm |
| Box Width: | 60-400mm | Box Height: | 15-130mm |
| Working Speed: | 15-25 Pcs/min | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,Free Spare Parts |
| Voltage: | 380V | Product Type: | Box Making Machine |
| Highlight: | Cake Box Making Machine 15mm,Cake Box Making Machine 130mm,Cardboard Box Making Machine CE |
||

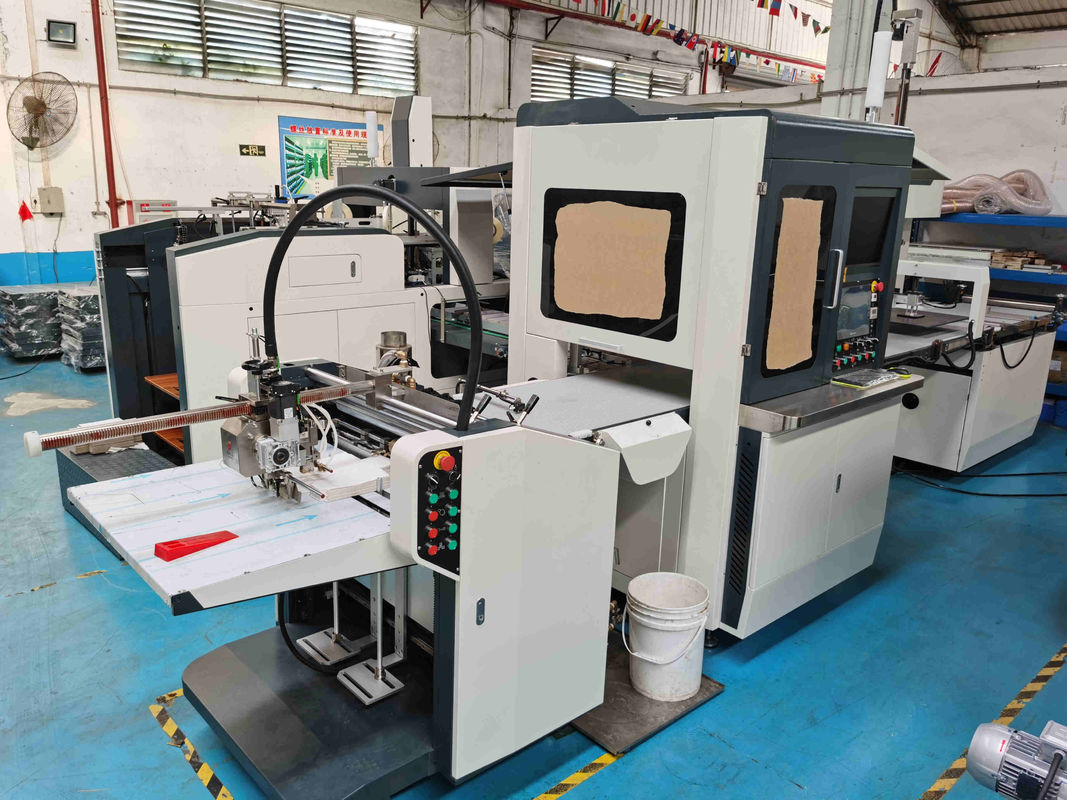

LS-1246G is a fully automatic rigid box making with box and case function. It has stable and high reputation in wordwide customers.
This machine has applied visual positioning for easy and high accurate positioning. This machine are suitable for the orders more than 1000 pcs. It has a big wide size working range. Max box length is 600mm, max box height is 400mm, max height is 130mm. LS-1246G are OK to positioning the hardcover as it equipped with case feeding device. Max feeding cardboard pcs are five pcs.
The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
