Product Details:
|
| Product Name: | LS-1200B Automatic Rigid Box Machine Cardboard Slotting Machine Grooving Machine For Making Rigid Box And Calendars | Working Speed: | 35m/min |
|---|---|---|---|
| Max Size: | 1000*600mm | Min Size: | 140*120mm |
| Carton Paper Thickness: | 500-800g/m² | Cardboard Thickness: | 0.8~4mm |
| Motor Power: | 2kw/ 380v 3 Phase | Machine Weight: | 1250kg |
| Highlight: | Automatic Rigid Box Machine,Calendars Rigid Box Machine,120mm Cardboard Slotting Grooving Machine |
||

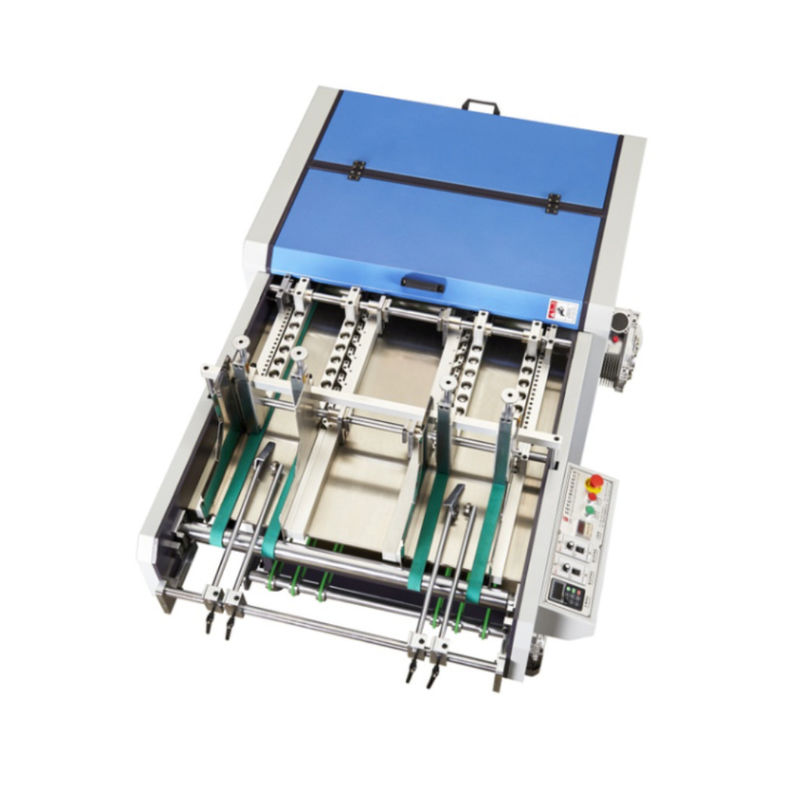

LS-1200B Automatic Rigid Box Machine Cardboard Slotting Machine Grooving Machine for Making Rigid box and Calendars
LS-1200B Rigid box grooving machine for cardboard V notching is newly invented based on the experience of older roller grooving machine. We apply the new technology which uses belts and roller together to convey the cardboard, this technology makes the grooving speed more faster. The product made by this machine is no rough edge,dustless, Noiseless, Smooth grooving. This machine equipped with special knife grinder, easy operating and seeting!
| Product name | Automatic Rigid Box Machine Cardboard Slotting Machine Grooving Machine for Making Rigid box and Calendars |
|
Machine model
|
LS-1200B
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
40m/min(100-200pcs/min)
|
|
Cardboard size
|
140*120-1000*600mm
|
|
Cardboard thickness
|
0.8-4mm
|
|
Motor power
|
2Kw/380v
|
|
Machine dimension
|
L2050*W1320*H1350mm
|
|
Machine weight
|
1250kg
|
Double alligning system
