Product Details:
|
| Product Name: | Small Box Packing Machine For Ring Box And Jewelry Box And Gift Box | Type: | Rigid Box Making Machine For Gift Box |
|---|---|---|---|
| Working Speed: | 15-36 Pcs/min | Dimension(L*W*H):: | L5982*W3181*H2100 |
| Weight Of Machine: | 1864kg | Certification: | CE, ISO |
Small Box Packing Machine For Ring Box And Jewelry Box And Gift Box
Introduction:

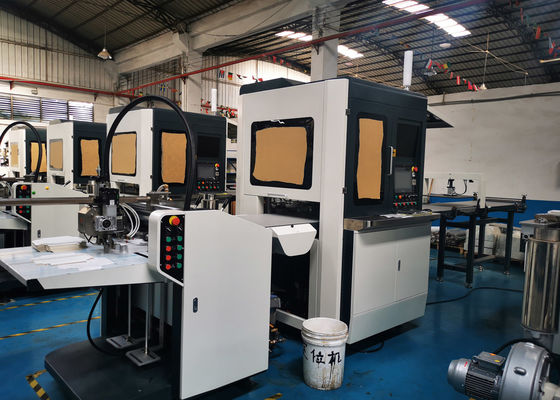

LS-450B Rigid box visual positioning machine focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production.
Paper feeding table
500 mm high paper can be stacked on the paper feeding table to reduce the time of stopping and feeding as much as possible. When loading paper, we need to adjust the position of each part of the mechanism according to the size of the paper. The console can be moved up and down through the buttons on the right side of the table (see the buttons section for details)

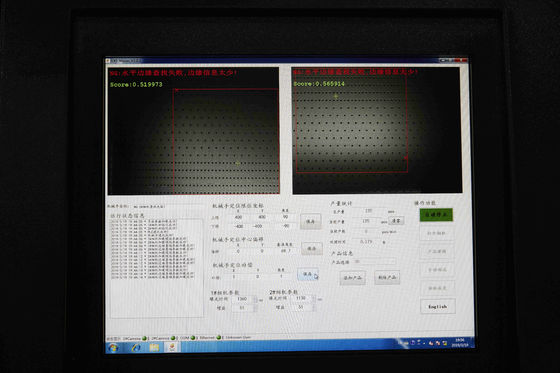

Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, and try our best to "Simply box making". Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
