Product Details:
|
| Product Name: | 8 Slots Rigid Box Grooving Machine With Speed 35 Meters Per Minute For Sheet Grooving | Working Speed: | 35m/min |
|---|---|---|---|
| Max Size: | 600*600mm | Min Size: | 140*120mm |
| Carton Paper Thickness: | 250-600g/m² | Cardboard Thickness: | 0.8-2.5mm |
| Highlight: | Rigid Box Grooving Machine 35m/min,Rigid Box Grooving Machine 2.5mm,35m/min sheet grooving machine |
||

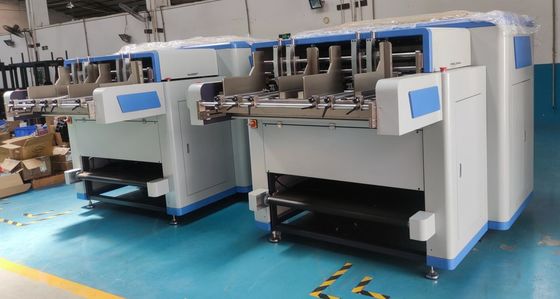

8 Slots Rigid Box Grooving Machine With Speed 35 meters Per Minute For Sheet Grooving
LS-1200S Automatic Rigid Box Grooving Machine, sheet grooving machine

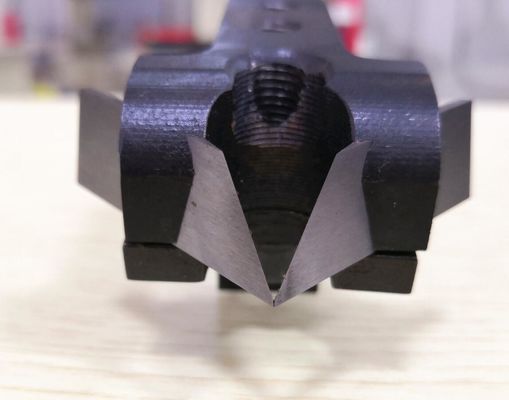

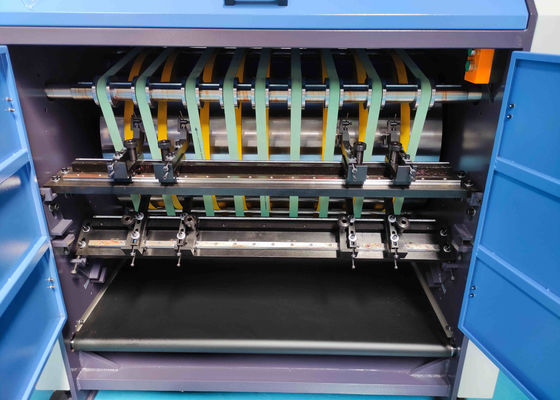

Grooving araea has equipped with 8 high accuracy blade seats. Each blade position will be show on the touch screen. So that operator can adjust grooving position accordingly. Which make the setting more easier and more accurate. After grooving, finished product will be delivered to the front side. Waste material will be collected in the back side.
This machine is popular in the carton paper packaging.
| Product name | Automatic Rigid Box Grooving Machine, sheet grooving machine |
|
Machine model
|
LS-1200S
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
35m/min(80-175pcs/min)
|
|
Cardboard size
|
140*120-600*600mm
|
|
Cardboard thickness |
0.8-2.5mm
|
|
Thin paper thickness
|
250-600gsm
|
|
Motor power
|
2.5 Kw/380v
|
|
Machine dimension |
L2300*W1730*H1530mm
|
|
Machine weight
|
1500kg
|
