Semi Automatic 950kg Rigid Box Forming Machine 30pcs/min For Gift Jewellery Box

Semi Automatic Rigid Box Making Machine For Gift Box And Jewellery Box

Applications:

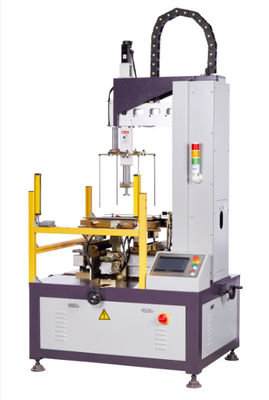

LS-F6 Rigid Box Making Machine is used for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping, such as shoes boxes, gift boxes, cell phone boxes, perfume boxes etc.

Parameter Settings:

A. Main Shaft Settings: Press the red dot for long to input the value to the corresponding position of the dot.

1. Reset: Click to reset the main shaft to reset the loading position.
2. Red arrow: Point the spindle motor up and down, used to move the spindle motor to adjust the machine.
3. Loading position: the location where hang up the box manually
4. Lower top position: It acts to reduce the vibration caused by the impact of the main motor. Generally, move the main motor to touch the lower mold and set the current position to the lower top position. This position is not set under normal circumstances.
5. Stripping position: the position where the stripping cylinder returns.
6. Top edged position: the position where the upper edged plate hits the edge. (On the [Mode Selection] page, you must select [Double Switch] to use).
7. Upper pressing position: the position where the upper pressing board is bubbled. (On the [Mode Selection] page, you must select [Double Switch] to use).
8. Folding ear position: folding position of the carton ear.
9. Down edged position: the position used to fold in the inner edge of the carton.
10. Down-pressing position: the position for the carton to press the bubble.

Features:

It has applied Pneumatic and Compressor air to driving the machine running. It is an ideal equipment for customer which has different quantity orders. Especially the customer seeking for higher quality products.It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7seconds. The max speed can reach 28 pcs/min to certain boxes.
