Product Details:
|
| Product Name: | Folding Box Machine & Carton Box Maker For Rigid Box Maker And Luxury Boxes | Automatic Grade: | Semi-automatic Box Forming |
|---|---|---|---|
| Machine Dimension: | L1221*W968*H2102mm | Type: | Packaging Box Line |
| Color: | Black & White & Yellow | Working Speed: | ＜28 Pcs/min |
| Highlight: | Folding Rigid Box Forming Machine,carton Rigid Box Forming Machine,28pcs/min box Packaging line |
||
Folding Box Machine & Carton Box Maker For Rigid Box Maker And Luxury Boxes
Applications:
LS-F6 Luxury Boxes wrapping machine is one of our top sell product, which use for ranges of rigid boxes making,such as shoes boxes, mobile phone boxes, gift boxes, luxury boxes and so on. It produces 20-30 pcs of box per minute, and also can handle special design boxes, such as the different height boxes & tucking into bottom etc.
Speed Parameter
A. Main Shaft Running Speed: in the automatic state, the running speed of the spindle motor;
B. Main Shaft Return Speed: in the automatic state, the spindle returns to the origin speed;
C. Split-mode Running Speed: in the automatic state, the running speed of the split-mode servo motor;
D. Parting and Folding Speed: in the automatic state, the speed at which the brush cylinder extends

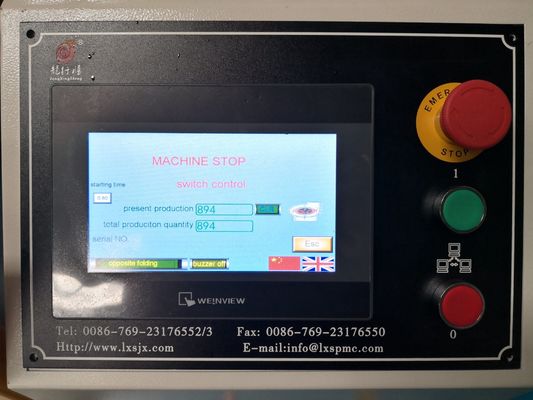

Every page of touch screen have two languages, we can change Chinese to English easily and also provide third language according to customers' demand.
Features:
It has applied Pneumatic and Compressor air to driving the machine running. It is an ideal equipment for customer which has different quantity orders. Especially the customer seeking for higher quality products.It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7seconds. The max speed can reach 28 pcs/min to certain boxes.
Its advantage: easy operating, the newest generation box wrapper, multi-function & high accuracy, with Japan, Taiwan imported machine parts to ensure stable working, can be upgraded into fully auto box making line.
| Type | LS-F6 |
| Max box size | L460*W380*H120mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 2.5kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤30pcs/min |
| Machine dimension | L1220*W960*H2100mm |
| Weight of machine | 920kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in the famous manufacturing city - Dongguan City, Guandong province, China.
We are one of the leading & professional manufacturer of Automatic/Semi-automatic Rigid Box Making Machines & cardboard grooving machine for varies rigid box making, such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes, shoes boxes, watch boxes, mobile phone boxes, etc.
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3. What is the production time while placing order?---- Within 7-30 workdays.
4. Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
