Product Details:
|
| Product Name: | LS-1200K Automatic Paper Cardboard Slotting Machine | Quantity Of Groove At A Time: | 8/Slots |
|---|---|---|---|
| Working Time: | 35m/min | Max Size: | 600*600mm |
| Min Size: | 140*120mm | Carton Paper Thickness: | 250-600g/m² |
| Cardboard Thickness: | 0.8~2.5mm | Motor Power: | 2.5kw/380v |
| Machine Dimension: | L2200*W1550*H1500mm | Machine Weight: | 1350kg |
| Highlight: | cardboard slotting machine 600mm,Automatic Paper cardboard slotting machine,paper slotting machine 600mm |
||

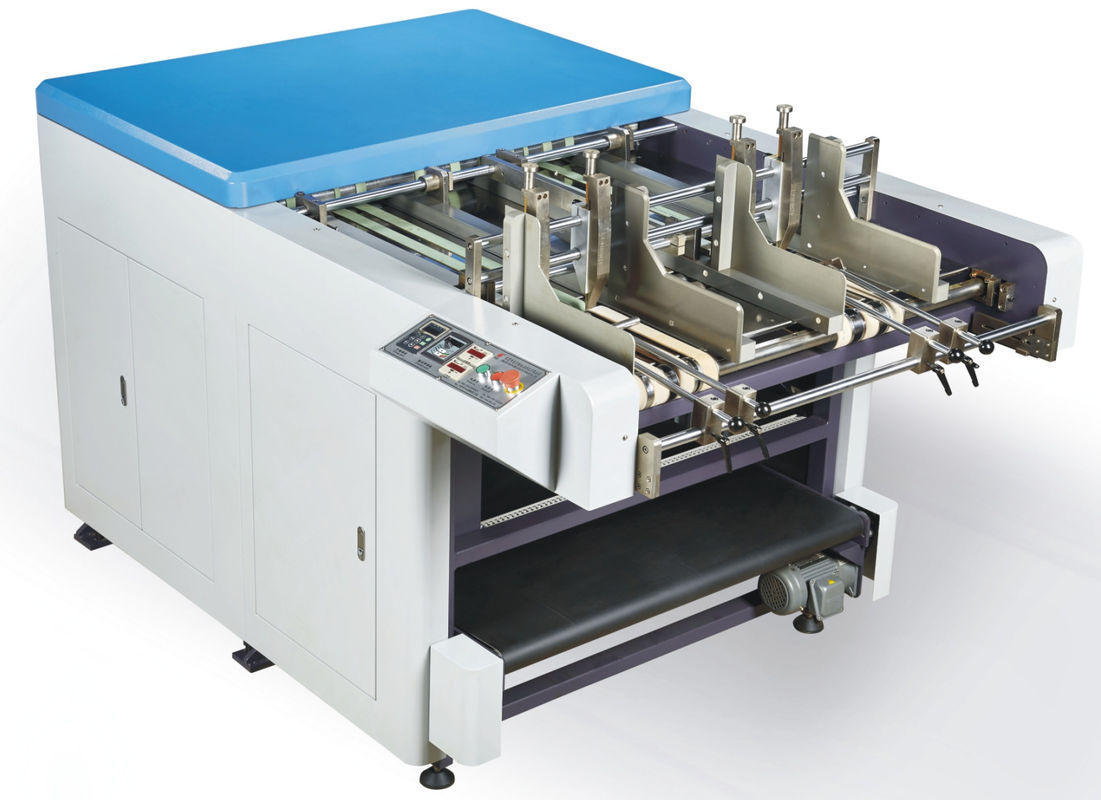

LS-1200K Automatic paper cardboard slotting machine

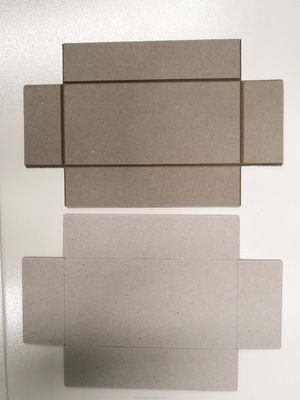

LS-1200K Automatic paper cardboard slotting machine is using for cardboard V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on cardboard size). Working speed is 35m/min, around 100-200 pcs/min.
LS-1200K has applied belt feeding syatem and double alligning system to ensure the constant and accurate cardboard feeding to grooving area. In the grooving area, it applies big roller which diameter is 60cm and pressing belt to convey card board pass the grooving blade. After finished, the conveyor will convey grooved cardboard to the front side, corner waste and slots waste will be feeding to the back side.
This roller grooving machine has start from 2012, Now it is popular in the packing industries. It is an ideal equipment for cardboard, thin paper grooving.
| Product Name | Automatic paper cardboard slotting machine |
|
Machine model
|
LS-1200K
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed 35
|
35m/min(100-200pcs/min)
|
|
Cardboard size
|
140*120-600*600mm
|
|
Cardboard thickness
|
0.8-2.5mm
|
|
Motor power
|
2Kw/380v
|
|
Machine dimension
|
L2200*W1550*H1500mm
|
|
Machine weight
|
1350kg
|
