Product Details:
|
| Product Name: | Fully Automatic Rigid Box Making Machine For Chocolate Box | Type: | LS-300B |
|---|---|---|---|
| Paper Size Max: | L800*W600mm | Paper Size Min: | L135*W100mm |
| Max Cardboard Size: | L760*W560mm | Min Cardboard Size: | L120*W100mm |
| Box Size (L): | L80-400mm | Box Size (W): | W60-300mm |
| Box Size (H): | H15-100mm | Paper Thickness: | 80-350g/m² |
| Cardboard Thickness: | 0.8~3mm | Edge Folding Size: | 10-90mm |
| Turn In Depth: | 15-80mm | Air Pressure: | 40L/min 0.8MPa |
| Working Speed: | 15-35pcs/min | Motor Power: | 14kw/ 380v 3 Phase |
| Heating Power: | 8kw | Machine Weight: | 3750kg |
| Machine Dimension: | L6600*W3800*H3000mm | ||
| High Light: | Gift Box Making Machine pcs/Min,Gift Box Making Machine 35pcs/Min,chocolate box machine 14kw |
||

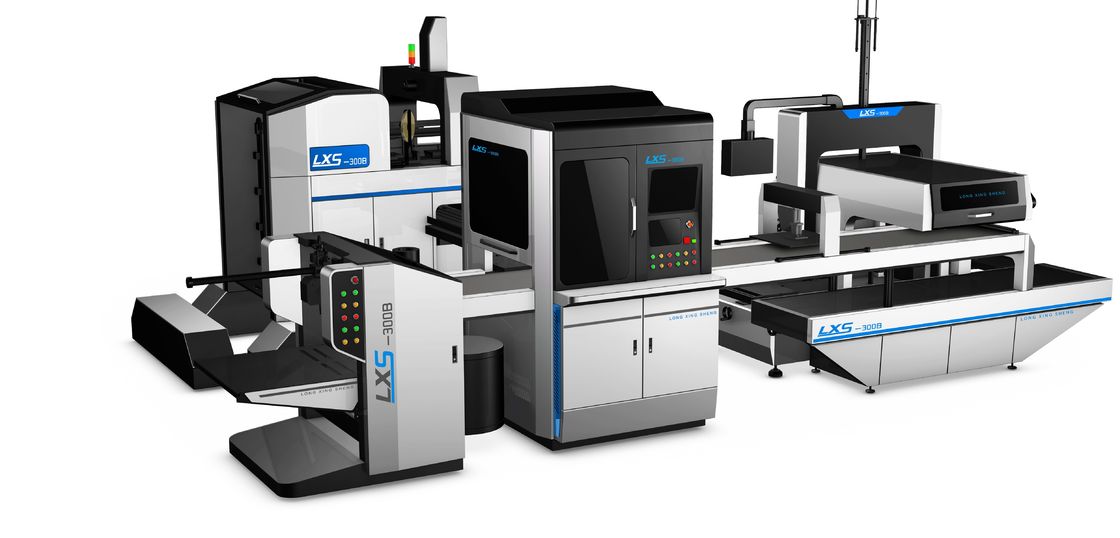

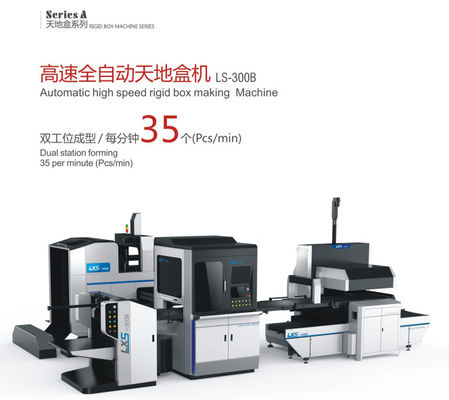

LS-300B Fully Automatic Rigid box making machine for chocolate box
LS-300B Automatic High Speed Rigid Box Making Machine is a large-scale automatic box making machine which integrates paper gluing, corner pasting, box positioning and forming.
| Type | LS-300B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L80-400mm |
| Box size(width) | W60-300mm |
| Box size(height) | H15-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-35 pcs/min |
| Motor power | 14kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3750kg |
| Machine dimension | L6600*W3800*H3000mm |
Double imported 10 Mega Pixel cameras: Visual positioning system no need moving camera (Basler from Germany). Can positioning products more accurately and quickly
box accurately and quickly
Low after-sales services and repairing fee
No need to move cameras when product size changing. Save time for setting
