Product Details:
|
| Product Name: | Automatic Gluing Machine And Pasting Machine For Making Gift Box & Mobile Phone Box | Working Speed: | 15-32 Pcs/min |
|---|---|---|---|
| Type: | Rigid Box Gluing Machine | Dimension(L*W*H):: | L5982*W3187*H2100mm |
| Weight Of Machine: | 1853kg | Certification: | CE, ISO |
| Highlight: | Gluing Packaging Box Making Machine,Pasting Packaging Box Making Machine,Mobile sweet box making machine |
||
Automatic Gluing Machine And Pasting Machine For Making Gift Box & Mobile Phone Box
Introduction:
Box Positioning Machine Which Is Used To Paste The Inner Box On The Paper To Make Mobile Phone Box For Different Box Sizes focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production.

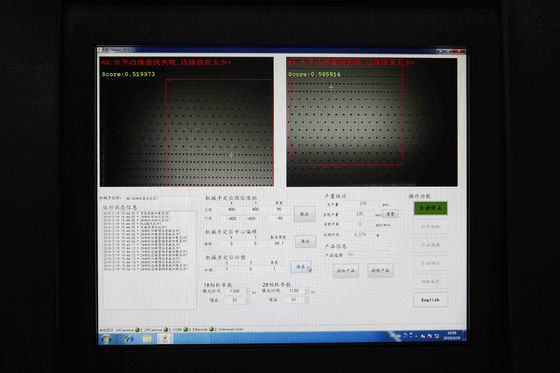

As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes. This machine can finish box paper gluing, box positioning (means paste the inner box in the glued paper automatically, which can save a lot of time and labor cost, also improve the positioning accuracy), it is really a useful box positioning machine.
This photoelectric eye is an alarm photoelectric eye for rubber roll paper, and the number of paper alarms is set on the feeder parameter setting page of the visual screen. Loosen the countersunk screw of the "conveyor sensor seat", turn the "connecting rod" to make the sensor to the appropriate position of the tissue paper, tighten the countersunk screw, if the adjustment of the sensor does not reach a suitable position, you can still pass Loosen the "machine screw" and turn the "adjustment plate" to adjust, to ensure that it can sense various colors of tissue. Before the machine runs normally, press the "SET" button of the sensor. When the machine is running normally, if it does not sense that the paper reaches the alarm number set by itself, the machine will automatically alarm.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, and try our best to "Simply box making". Insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
