Product Details:
|
| Quantity Of Groove At A Time: | 8/ Slots | Working Speed: | 35m/min |
|---|---|---|---|
| Max Size: | 600*600mm | Min Size: | 140*120mm |
| Product Name: | Cardboard Grooving Machine | Model: | LS-1200S |
| Highlight: | LS-1200S Board Grooving Machine,Digital Board Grooving Machine,carton cardboard making machine |
||

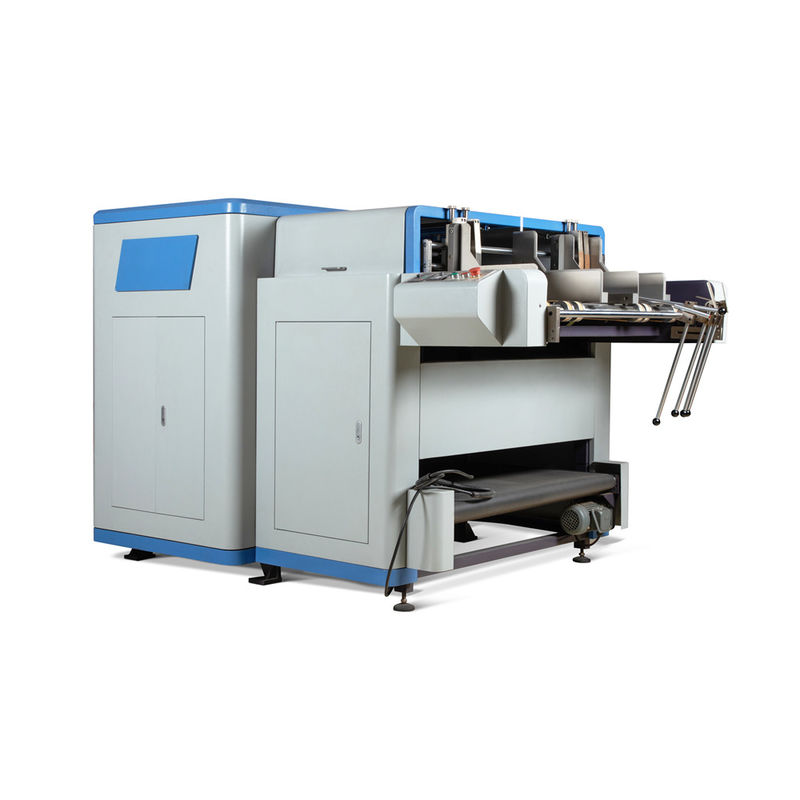

LS-1200S Automatic Digital carton paper cardboard grooving machine
LS-1200S Automatic Digital carton paper cardboard grooving machine is special design for thin paper grooving with high accuracy and easy operation. It is able to grooving the thin paper (250-600 gsm) and Cardboard (0.8-2.5mm). The working speed at 35m/min. It able to grooving 8 slots at a time. If need add more v-slots balde. It can add to 12 v-slots balde seats. Grooving angle of V-slots at 80-120 degree.
| Product name | Automatic Digital carton paper cardboard grooving machine |
|
Machine model
|
LS-1200S
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
35m/min(80-175pcs/min)
|
|
Cardboard size
|
140*120-600*600mm
|
|
Cardboard thickness |
0.8-2.5mm
|
|
Thin paper thickness
|
250-600gsm
|
|
Motor power
|
2.5 Kw/380v
|
|
Machine dimension |
L2300*W1730*H1530mm
|
|
Machine weight
|
1500kg
|
V-shape grooving blade, Specially design for thin paper grooving.
