Product Details:
|
| Product Name: | LS-1200S Automatic Digital Paper Grooving Machine For Cosmetic Box | Carton Paper Thickness: | 250-600g/m² |
|---|---|---|---|
| Cardboard Thickness: | 0.8-2.5mm | Motor Power: | 2.5kw / 380v |
| Machine Dimension: | L2300*W1730*H1530mm | Machine Weight: | 1500kg |
| Highlight: | 2.5mm Board Grooving Machine,Digital Board Grooving Machine,1530mm Paper Grooving Machine |
||

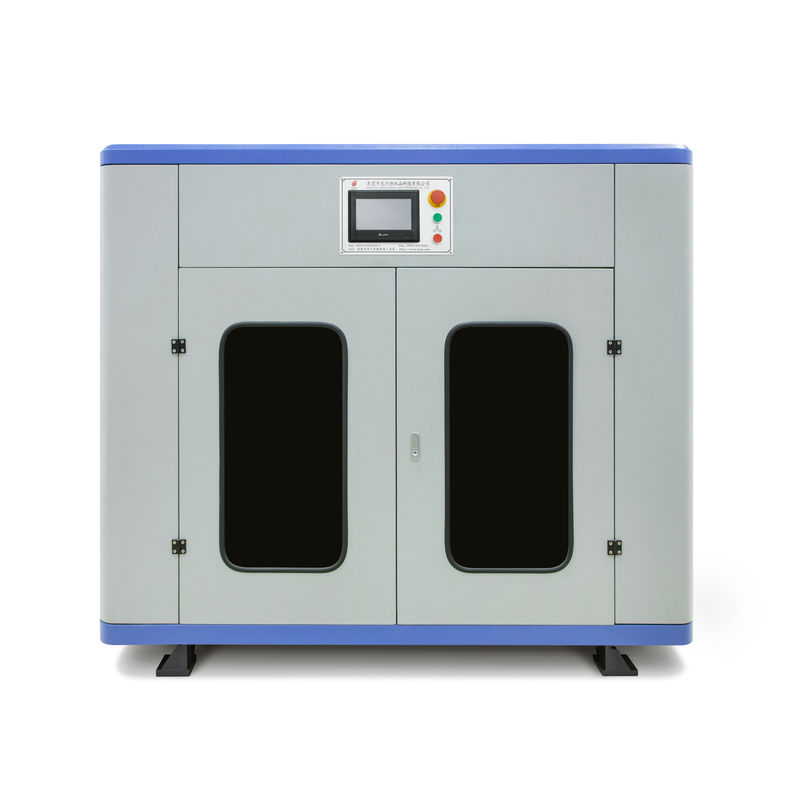

LS-1200S Automatic Digital Paper Grooving Machine For Cosmetic Box
LS-1200S Automatic Digital Paper Grooving Machine
It has applied conveyor to feeding the paper to the grooving area, Three section ensure it is easier to feeding thin paper as it has higher friction. Applied single alligning system, no need changing when meet different size and unique shape. Only require the left side is straight.
| Product name | Automatic Digital Paper Grooving Machine For Cosmetic Box |
|
Machine model
|
LS-1200S
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
35m/min(80-175pcs/min)
|
|
Cardboard size
|
140*120-600*600mm
|
|
Cardboard thickness |
0.8-2.5mm
|
|
Thin paper thickness
|
250-600gsm
|
|
Motor power
|
2.5 Kw/380v
|
|
Machine dimension |
L2300*W1730*H1530mm
|
|
Machine weight
|
1500kg
|
