Product Details:
|
| Product Name: | Box Folding Machine For Rigid Box, Paper Box, Cardboard Box, High-End Box | Machine Dimension: | L1228*W967*H2102mm |
|---|---|---|---|
| Color: | Black & White & Yellow | Working Speed: | ＜28pcs/min |
| Power: | 2.5kw | Machine Weight: | 894kg |
| Highlight: | box folding machine Rigid Cardboard,2.5kw box folding machine,Rigid box machine H2102mm |
||
Box Folding Machine For Rigid Box, Paper Box, Cardboard Box, High-End Box
Applications:
Box Folding Machine is one of our hot sell products, which use for ranges of rigid boxes making,such as shoes boxes, mobile phone boxes, gift boxes, luxury boxes and so on. It produces 20-30 pcs of box per minute, and also can handle special design boxes, such as the different height boxes & tucking into bottom etc. And this machine have been modified size to make Pandora ring boxes, welcome to contact us for more videos and details.
Gift Box Making Machine For Sweet Box And Rigid Paper Box is used for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping, such as shoes boxes, gift boxes, cell phone boxes, perfume boxes etc.
Mold Design Manual
1. The mold is composed of an upper mold, a middle mold, and a lower mold, which can be divided into
a) According to the material of the mold, it is divided into plastic mold and wooden mold;
b) According to the use type of the mold, it is divided into ordinary mold and Son-Mother Mold;
i. Ordinary molds are generally suitable for boxes which are not folded to the end;
ii. Son-Mother Mold is generally used for fold-to-bottom, fold-to-bottom and turn over, and thinner boxes.
iii. It is recommended that making a Mother-Son Mold is conducive to returning the material of a carton whose height is less than 60mm.
Features:
It has applied Pneumatic and Compressor air to driving the machine running. It is an ideal equipment for customer which has different quantity orders. Especially the customer seeking for higher quality products.It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7seconds. The max speed can reach 28 pcs/min to certain boxes.

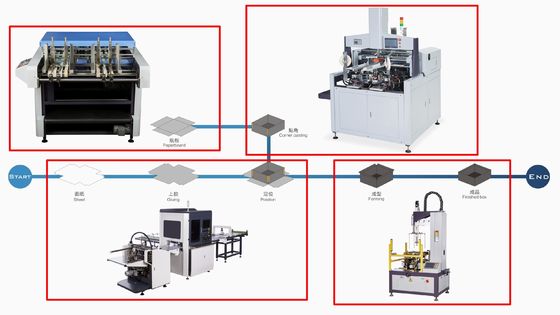

This machine is easy operating, the newest generation box wrapper, multi-function & high accuracy, with Japan, Taiwan imported machine parts to ensure stable working, can be upgraded into fully auto box making line.
| Type | LS-F6 |
| Max box size | L460*W380*H120mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 2.5kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤30pcs/min |
| Machine dimension | L1220*W960*H2100mm |
| Weight of machine | 920kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in the famous manufacturing city - Dongguan City, Guandong province, China.
We are one of the leading & professional manufacturer of Automatic/Semi-automatic Rigid Box Making Machines & cardboard grooving machine for varies rigid box making, such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes, shoes boxes, watch boxes, mobile phone boxes, etc.
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
3. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
4. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
