Product Details:
|
| Product Name: | Multi-Function Box Hardcover Making Machine With High Speed And Big Box Sizes And Panasonic Servo Motor | Application: | Rigid Box/ Box Lid Positioning |
|---|---|---|---|
| Working Speed: | 15-40 Pcs/min | Dimension(L*W*H):: | L5982*W3186*H2100 |
| Weight Of Machine: | 2123kg | Automatic Grade: | Automatic |
| Highlight: | Multi function box hardcover making machine,hardcover making machine L800mm,Box Making Machine W600mm |
||

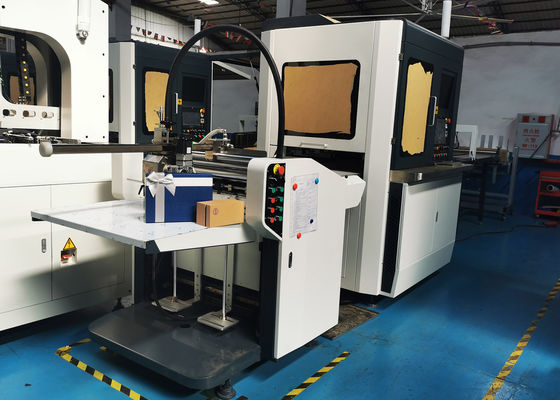

Multi-Function Box Hardcover Making Machine With High Speed And Big Box Sizes And Panasonic Servo Motor
Introduction:

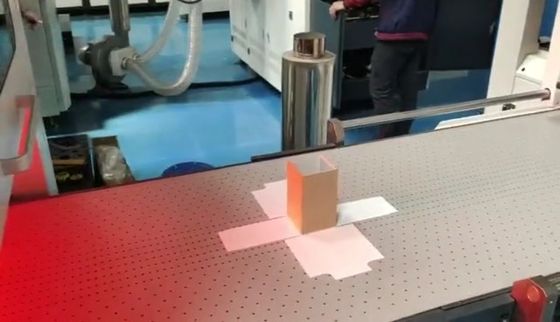

Multi-Function Box & Hardcover Positioning Machine With Panasonic Servo Motor. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.

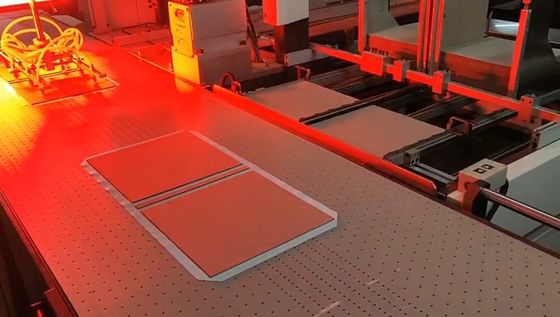

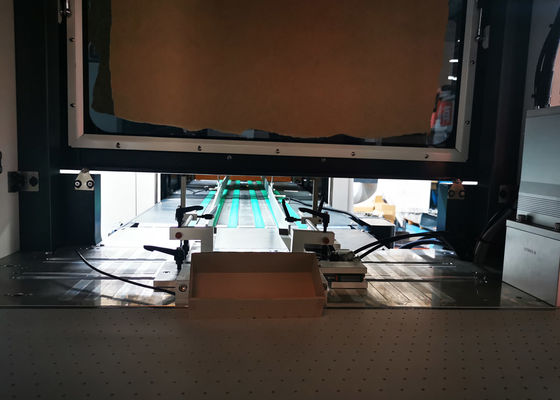

As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
Paper feeding can separate the sheets of paper stacked neatly and glue them. It should be noted that there are many kinds of paper, and there will be static electricity between some papers. Double sheets will appear during separation. The paper can be properly kneaded and separated before feeding to reduce the probability of double sheets
Loosen the "locking handle" to move the entire feeder paper feeding mechanism, and the position can be adjusted by rotating the "front and rear adjustment handwheel". Adjust according to the length of the face paper, the "pressing foot" should press the paper about 5mm; loosen the quick wrench on the rear side of the fixed "paper stopper" to adjust the distance between the "paper stopper", "paper stopper" The position of the “small board” should be close to the right corner of the back of the paper.
6. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
