Automatic Smart High Speed Rigid Clothing Candle Wine Box Making Machine With Visual Positioning
As the development of global packaging market, the print and packing industries has increasing a lot. It have meet the situation that more and more orders and few experienced engineer of machine operating. It is the reason why we developing the LS-1246D, for high speed and intelligent setting.
With the developing of rigid box production, more customer are looking for an automatic rigid box making machine with high speed and intelligent setting. So that the worker can focus on the rigid box production not in machines itself.
Whole line setting time in 45-60 minutes. So that can meet different order quantity request. What`s more, it has a wide working range. Max box length is 600mm, max box height is 400mm, max height is 120mm, it can help you gain more orders with this smart setting machine.
Specs of autoamtic smart rigid box making machine
| Type |
LS-1246D |
| Paper size(max) |
L800*W600mm |
| paper size(min) |
L135*W100mm |
| Max cardboard size |
L760*W560mm |
| Min cardboard size |
L120*W100mm |
| Box size(length) |
L100-600mm |
| Box size(width) |
W60-400mm |
| Box size(height) |
H15-120mm |
| Paper thickness |
80-350g/m2 |
| Cardboard thickness |
0.8-3mm |
| Edge folding size |
10-90mm |
| Turn in depth |
15-80mm |
| Working speed |
15-45 pcs/min |
| Motor power |
13kw/380v 3phase |
| Heating power |
8kw |
| Air pressure |
40L/min 0.8MPa |
| Weight of machine |
4300kg |
| Machine dimension |
L6600*W4200*H3000mm |
Machine advantages
Quickly Size setting
No need to change air pressing board
No need to change tuck in blade
No need to move camera for size changing, quick size changing
Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Storage(memory) function for sizes setting
Suitable for changeable orders
Such as 10,000 pcs for one order
Main features:
1. Automatic setting function.
2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
4. Robotic arm (Yamaha, Mitsubishi, Delta)
5. Double Germany cameras (1000 pixels)
6. Panasonic PLC
Price vary with raw material cost, please contact our sales for latest prices.
Machine setting time: Short in 45 minutes
Intelligent setting page

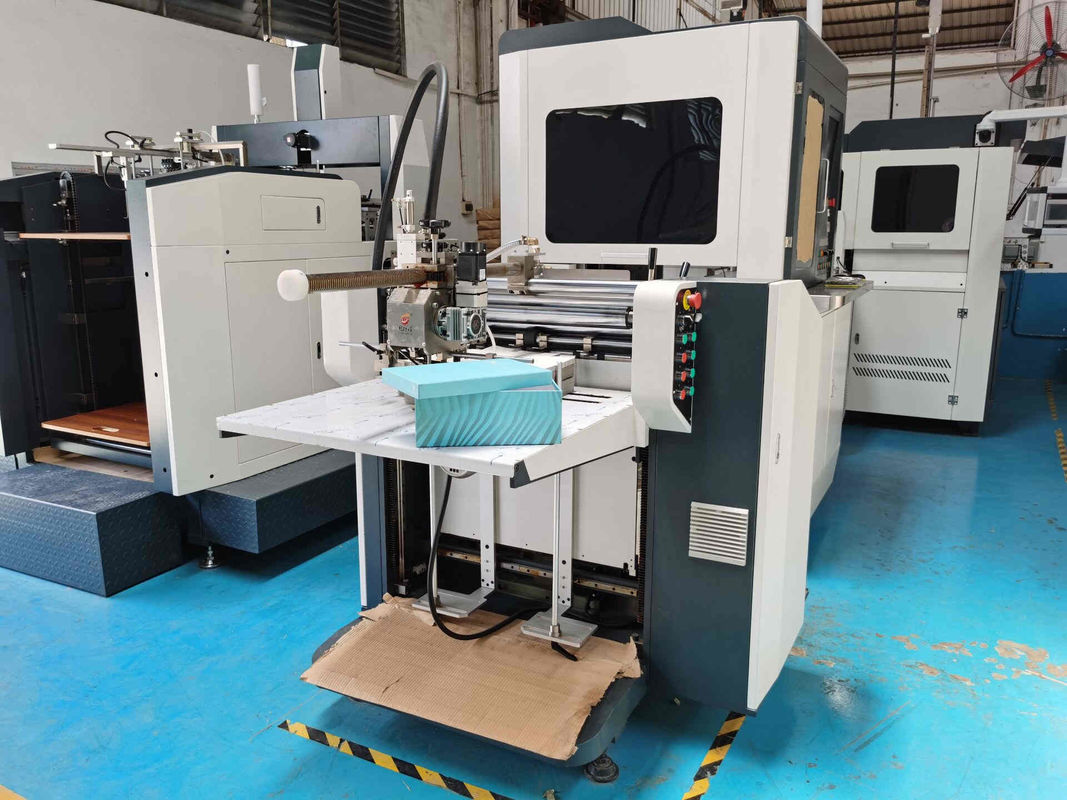

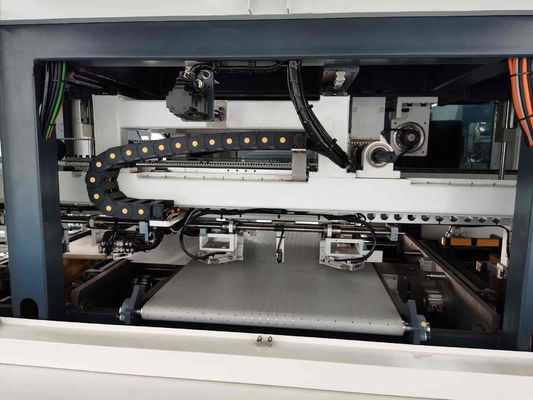

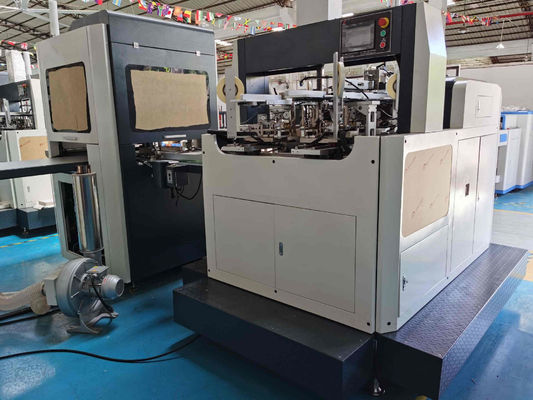

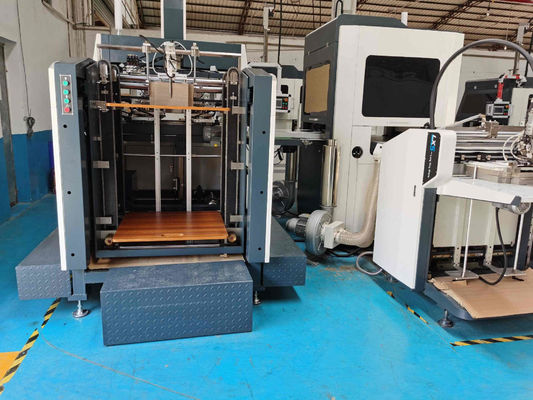

Machine parts
About our company
Dongguan Longxingjian Intellighent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Smart gift box solutions for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
Space of Dongguan Fty:10598m2
Major market: America, Europe, Asia, Mid-east.
FAQ
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2 .Standard package to ensure the safe transportation.
3. Professional service
