Automatic Smart Packaging Gift Box Making Machine Cardboard Box Maker Phone Box Wrapping System
LS-1246B Autoamtic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper gluing, box positioning, box wraping and pressing at one time.

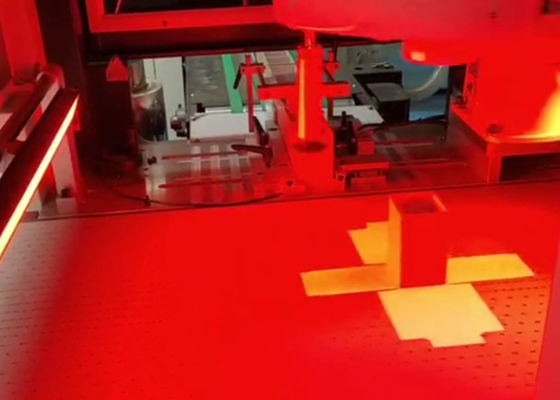

This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty. Whole line setting time in 30-45 minutes. So that can meet different order quantity request.
What`s more, it has a wide working range. Max box length is 600mm, max box height is 400mm, max height is 120mm, it can help you gain more orders with this smart setting machine. The LS-1246B is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
Specs of autoamtic smart rigid box making machine
| Type |
LS-1246B |
| Paper size(max) |
L800*W600mm |
| paper size(min) |
L135*W100mm |
| Max cardboard size |
L760*W560mm |
| Min cardboard size |
L120*W100mm |
| Box size(length) |
L100-600mm |
| Box size(width) |
W60-400mm |
| Box size(height) |
H15-120mm |
| Paper thickness |
80-350g/m2 |
| Cardboard thickness |
0.8-3mm |
| Edge folding size |
10-90mm |
| Turn in depth |
15-80mm |
| Working speed |
15-25 pcs/min |
| Motor power |
13kw/380v 3phase |
| Heating power |
8kw |
| Air pressure |
40L/min 0.8MPa |
| Weight of machine |
3800kg |
| Machine dimension |
L6600*W3800*H3000mm |
Machine advantages
Quickly job setting
No need to change tuck in blade
No need to move camera for size changing, quick job changing
Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Can make big size box, such as 600*400mm, and the height can reach 120mm
Suitable for changeable orders
Such as 10,000 pcs for one order
Main features:
1. Automatic setting function.
2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
Price vary with raw material cost, please contact our sales for latest prices.
Machine setting time: Short in 45 minutes
Intelligent setting page

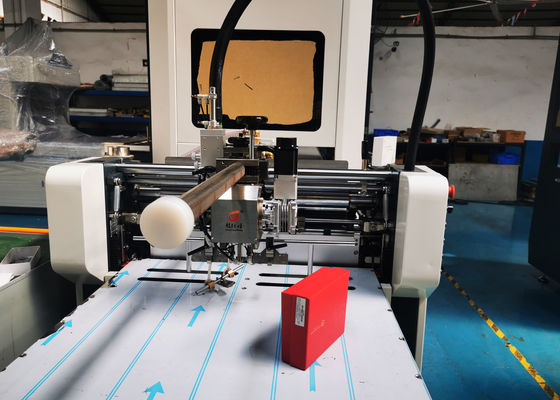

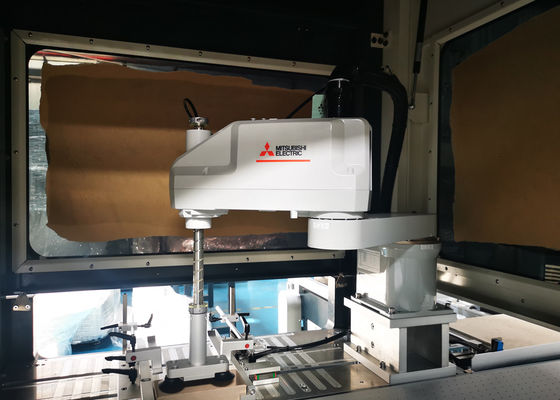

Machine parts
About our company
Dongguan Longxingjian Intellighent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
FAQ
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
