Product Details:
|
| Products Name: | Automatic Smart Packaging Match Paper Box Making Machine Cardboard Box Maker Phone Box Wrapping System | Max Cardboard Size: | L760*W560mm |
|---|---|---|---|
| Min Cardboard Size: | L120*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 13-120mm |
| Working Speed: | 5-25 Pcs/min | Paper Thickness: | 80-350gsm |

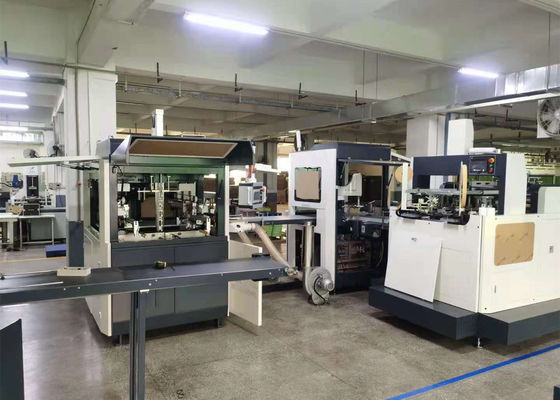

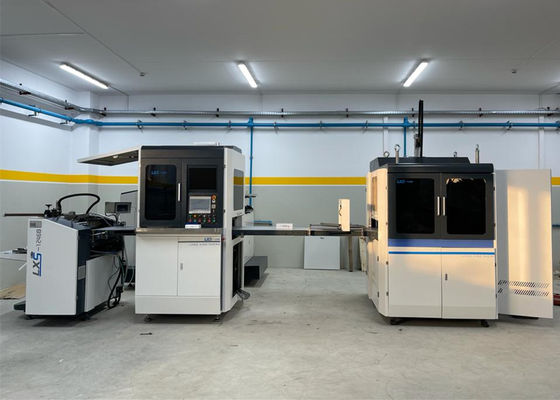

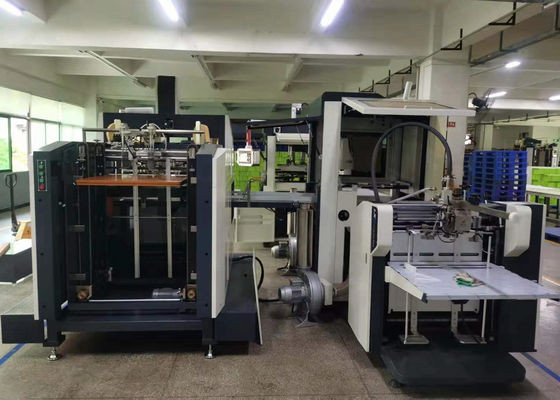

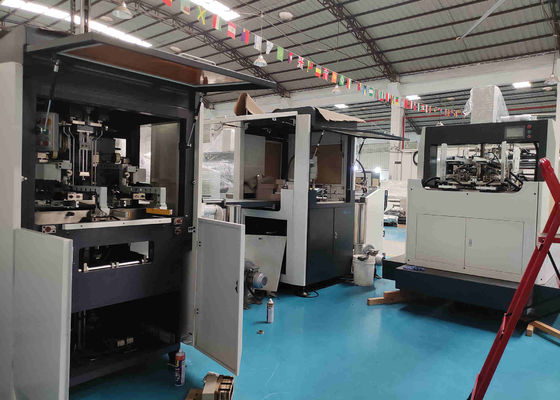

LS-1246B intelligent automatic box machine is a large box automatic production equipment that integrates gluing, positioning, forming and cornering.
What`s more, it has a wide working range. Max box length is 600mm, max box height is 400mm, max height is 120mm, it can help you gain more orders with this smart setting machine.
This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty. Whole line setting time in 30-45 minutes. So that can meet different order quantity request.
The LS-1246B is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
