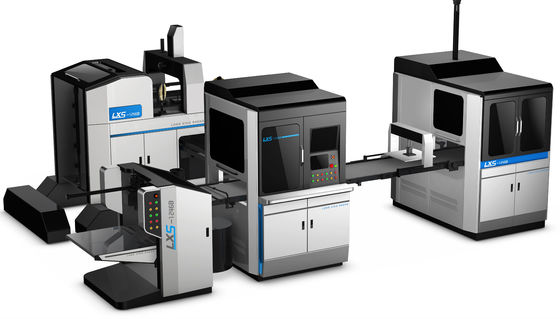

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function
Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function
Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function

Large Image :  Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE/ISO-9001
Model Number: LS-1246B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: with film, paper and wooden crates
Delivery Time: 7-30 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per month
Contact Now

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function

Description
Products Name: Automatic Smart Packaging Rigid Cellphone Box Making Machine With Autoamtic Setting Function Max Cardboard Size: L760*W560mm
Min Cardboard Size: L120*W100mm Box Length: 80-600mm
Box Width: 65-400mm Box Height: 15-120mm
Cardboard Thickness: 0.9-3mm Machine Weight: 3800Kg

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function

1. Positioning part(inner box positioning):A robot is used to grab the box embryo and accurately position it on the glued surface paper through the camera.

2. Gluing part(paper gluing):Separate the sheet of facial paper, apply glue evenly on the facial paper through the roller, and then convey the glued facial paper to the positioning part of the box embryo by the conveyor belt.

3. Box wrapping part (box wrapping):After the positioning is completed, the box blanks are pasted and foamed, and finally the completed box is removed from the production line from both sides of the machine.

4.Corner pasting part(corner pasting ):Separate the cardboard sheets, use high-temperature copper heads to melt the tape to the four corners of the box to produce a box blank. Conveyed by conveyor belt to the positioning part of the box embryo waiting for positioning with the tissue.


Specs of autoamtic smart rigid box making machine
Type LS-1246B
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-120mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-25 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 3800kg
Machine dimension L6600*W3800*H3000mm



Machine advantages

Quickly job setting
No need to change tuck in blade
No need to move camera for size changing, quick job changing

Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Storage(memory) function for sizes setting

Suitable for changeable orders
Such as 2,000 pcs for one order

Main features:
1. Automatic setting function.
2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
4. Robotic arm (Yamaha/Delta/Mitsubishi)
5. Double Germany cameras (1000 pixels)
6. One forming part.
7. Whole machine require working in stable working environment. Such as air contioner room.

Price vary with raw material cost, please contact our sales for latest prices.

Working range of LS-1246B
Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function 0

Working process

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function 1

Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function 2                                                                Machine setting time: Short in 45 minutes


Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function 3
Intelligent setting page
Automatic Smart Packaging Rigid Cellphone Box Making Machine with autoamtic setting function 4
Machine parts


Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine.
Market positioning: Middle and high-end market
Major market: America, Europe, Asia, Mid-east.

FAQ
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q4: Are you a factory or a trading company?
A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q5: Where is your main market?
A5: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.

Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2 .Standard package to ensure the safe transportation.
3. Professional service
4. Whole life after-sale service.
