Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Perfume Box Making Machine Cardboard Box Maker Phone Box Wrapping System | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Working Speed: | 3-25 Pcs/min | Motor Power: | 14Kw/380V 3 Phase |
| Air Pressue: | 40L/min 0.8Mpa | ||
| Highlight: | Automatic Phone Case Manufacturing Machine,380V Mobile Phone Case Making Machine,Automatic Mobile Phone Case Making Machine |
||
Paper table:The facial paper can be placed on the table, and the paper will be separated by the feeder. When the facial paper is reduced, the table will automatically rise to the suction position. When reloading the paper, you need to lower the table manually, which can be lifted and lowered by the button on the side.
Feeder:Separate the neatly stacked face paper sheets into the gluing mechanism.
Glue system:After the feeder paper feeds the cover paper into the roller, the glue is evenly applied to the cover paper through the action of the roller, the cover paper is separated from the roller by the scraper, and the cover paper will be transported to the positioning part by the conveyor belt.
Box pressing:Reinforce the bottom of the positioned cover paper and the inner box
Roll paper roller:Recycle the unfinished cover paper or residual cover paper on the conveyor belt that has not been positioned with the inner box to reduce the chance of secondary scrap.
Gluing tank:The glue is melted and transported to the gluing mechanism, and the glue can be heated for a specific time.

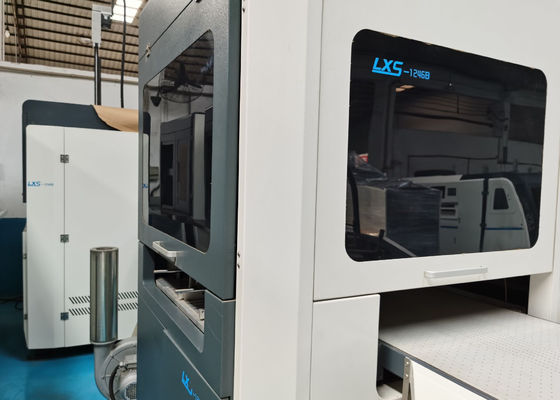

| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
