Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Jewelry Box Making Machine Cardboard Box Wrapping System | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Paper Thickness: | 80-350gsm | Heating Power: | 8 Kw |

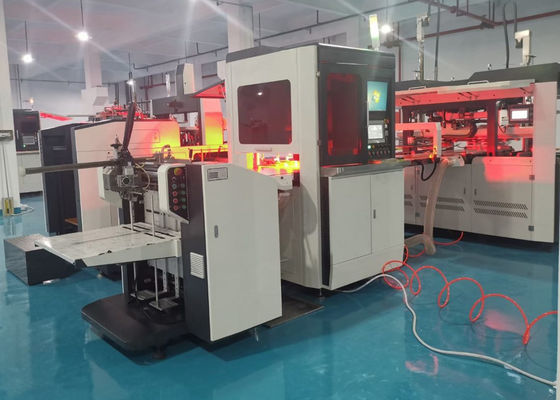

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
About 500mm high tissue paper can be stacked on the cardboard stacking table to minimize the time of downtime and feeding. When loading paper, you need to adjust the position of each part of the mechanism according to the size of the paper.
The console board can be moved up and down through the buttons on the right side of the table (see the button section for details)
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
