Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Hardboard Box Making Machine Cardboard Box Maker Phone Box Wrapping System | Box Length: | 80-600mm |
|---|---|---|---|
| Box Width: | 65-400mm | Box Height: | 15-120mm |
| Working Speed: | 15-25 Pcs/min | Motor Power: | 14Kw 380V 3 Phase |
| Heating Power: | 9 Kw | Machine Dimension: | L6600*W3800*H4000mm |
| Highlight: | 400mm Corrugated Box Manufacturing Machine,14Kw Corrugated Box Manufacturing Machine,14Kw Rigid Box Machine |
||

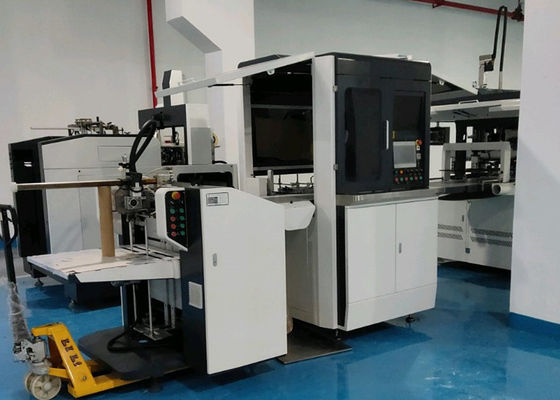

Loosen the "locking handle" to move the entire feeder paper feeding mechanism, and adjust the position by rotating the "front and rear adjustment handwheel". Adjust according to the length of the face paper, the "pressing foot" should press the cover paper about 5mm; loosen the quick
wrench on the rear side of the fixed "paper stopper" to adjust the distance between the "paper stopper", "paper stopper" The position of the "paper stopper" should be close to the right corner of the back of the tissue.
Rotate the "up and down adjustment handwheel" to fine-tune the up and down position of the feeder mechanism, which can be adjusted according to the height of the "pressing foot". The function of the "blowing nozzle" is to blow away the tissue paper that may absorb double sheets to prevent double sheets. Adjusting the nut on the "blowing nozzle" can properly adjust the position of the "blowing nozzle".

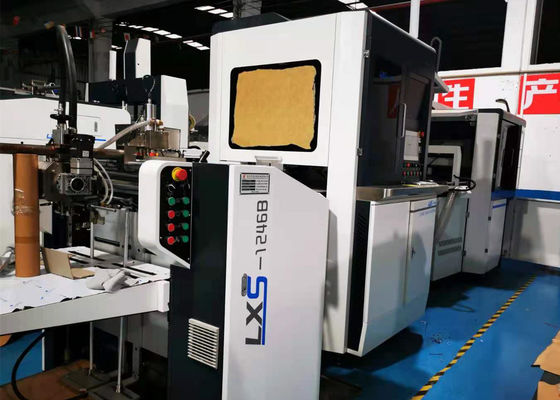

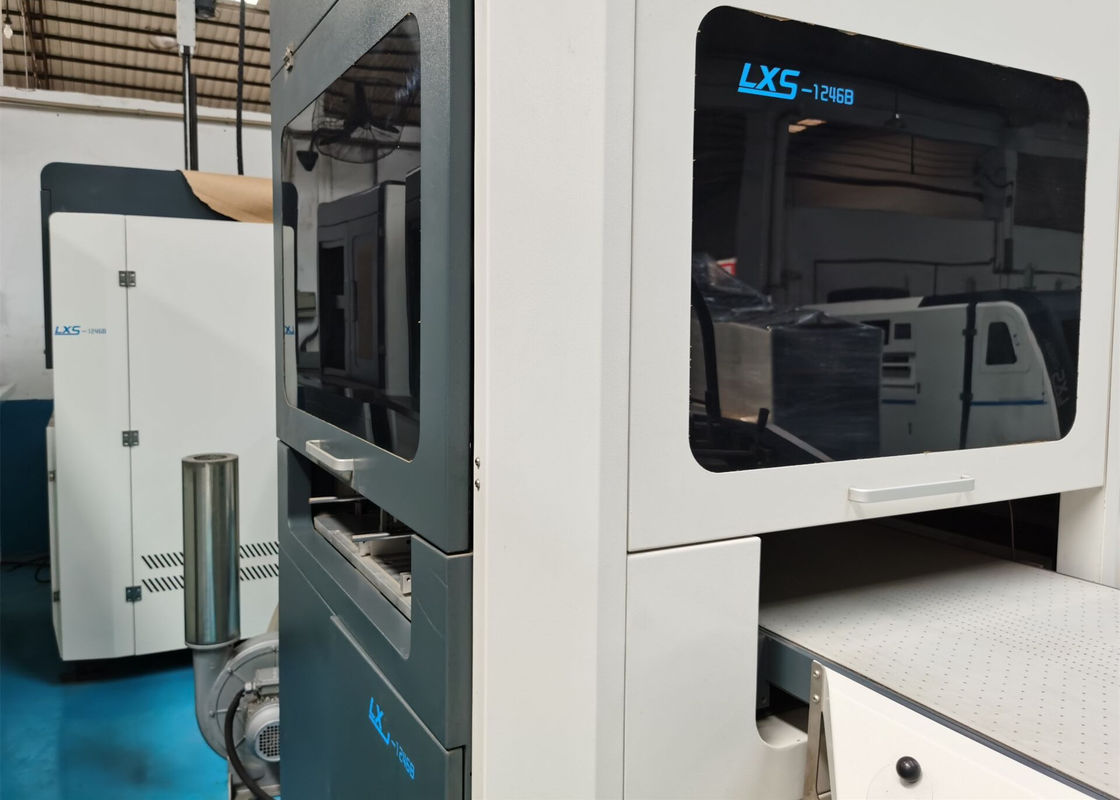

| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
