Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Top And Bottom Box Making Machine Cardboard Box Maker Phone Box Wrapping System | Min Cardboard Size: | L120*W100mm |
|---|---|---|---|
| Box Length: | 80-600mm | Box Width: | 65-400mm |
| Box Height: | 15-120mm | Working Speed: | 15-25 Pcs/min |
| Wrapping Into Bottom: | 80mm | Motor Power: | 15Kw/380V 3 Phase |
| Highlight: | 600mm Packaging Box Manufacturing Machine,15Kw Corrugated Box Automatic Machine,600mm Corrugated Box Automatic Machine |
||
The robotic arm grabs the box on the conveyor belt, and accurately positions the box on the cover paper by taking a photo of the cameras. The position the box by the robot is automatically calculated according to the size of the box (for details, please refer to the touch screen setting)

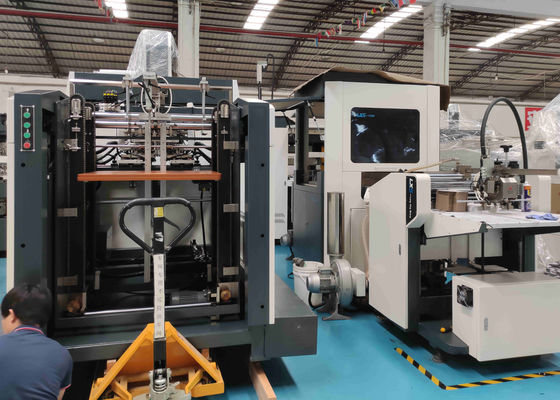

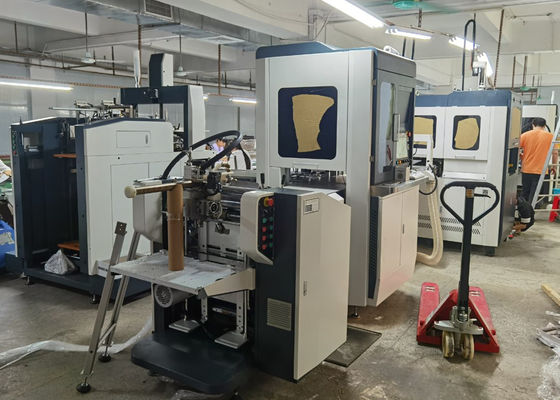

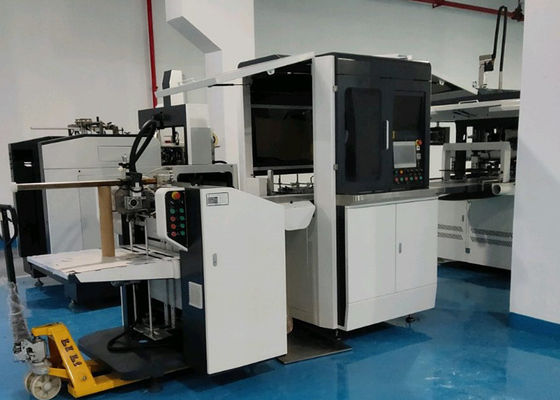

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming machine to make the whole machine setting time reduce grealty. Whole line setting time in 30-45 minutes. So that can meet different orders quantity request.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
