Product Details:
|
| Name: | LS-T430 Automatic High Speed Cardboard Box Corner Taping Machine For Phone Box | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Warranty: | 1 Year |
| Working Speed: | <75 Pcs/min | Driven Type: | Electric & Pneumatic |
| Dimension(L*W*H):: | L1650*W1300*H1960mm | Weight Of Machine: | 920kg |
| Automatic Grade: | Automatic | ||
| Highlight: | Phone Box Corner Taping Machine,75pcs/Min Corner Taping Machine,920kg Box Corner Pasting Machine |
||

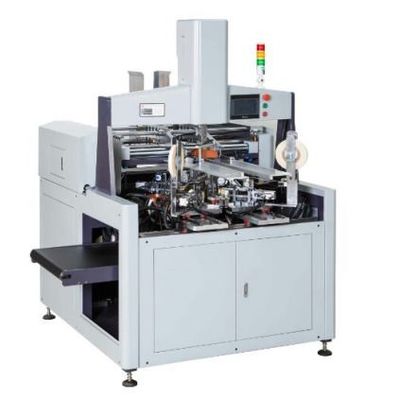

LS-T430 Automatic High Speed Cardboard Box Corner Taping Machine For Phone Box
Introduction:
LS-T430 Automatic corner pasting machine is applied to pasting the four corners of die cutting cardboard and v-slots grooving cardboard. This machine use belt feeding way to convey coardboard to punching area. Shorten feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The max working speed is 75 pcs/min, it able to paste normal rigid box and slant side box, paste twice for high box. Whole machine is 1650*1300*1960mm. Small and easy to be movement. It is suitable to combine with semi-automatic rigid box making line.
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
