Product Details:
|
| Product Name: | Rigid Gift Box Making Machine For Chocolate Box And Premium Gift Box | Air Pressure: | 40L/min 0.8MPa |
|---|---|---|---|
| Working Speed: | 15-35pcs/min | Motor Power: | 14kw/ 380v 3 Phase |
| Heating Power: | 8kw | Machine Weight: | 3750kg |
| Machine Dimension: | L6600*W3800*H3000mm | ||
| Highlight: | 40L/min Gift Box Making Machine,0.8MPa Gift Box Making Machine,0.8MPa Rigid box machine |
||
Rigid Gift Box Making Machine For Chocolate Box And Premium Gift Box
LS-300B in the transportation process, is divided into a number of different parts for packaging.
The whole machine is divided into several independent parts, the surface of each part is covered with plastic film to prevent dust and rain from entering, and then the machine is put into a suitable wooden box to prevent the machine from moisture and rust.
After delivery to the destination, the parts are assembled into a complete production line.
2. High Speed, Suitable for big orders. especially for the orders which are more than 50,000 pcs at one time for the same size,
because one line can make around 14000 pcs/ day. Better service for long-term and stable orders
| Type | LS-300B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L80-400mm |
| Box size(width) | W60-300mm |
| Box size(height) | H15-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-35 pcs/min |
| Motor power | 14kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3750kg |
| Machine dimension | L6600*W3800*H3000mm |
Visual camera

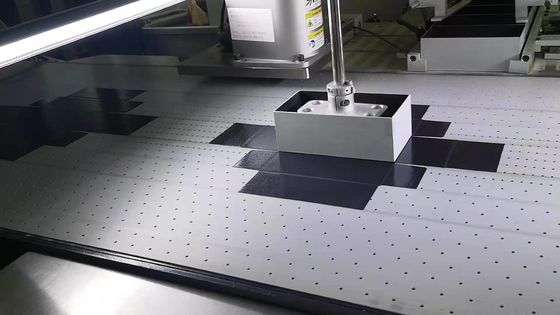

Box picking system
Machine frame
Double imported 10 Mega Pixel cameras:
Visual positioning system
No need moving camera (Basler from Germany).
