Product Details:
|
| Product Name: | LS-300B Fully Automatic Rigid Chocolate Paper Box Making Machine For Chocolate Box | Air Pressure: | 40L/min 0.8MPa |
|---|---|---|---|
| Working Speed: | 15-35pcs/min | Machine Weight: | 3750kg |
| Machine Dimension: | L6600*W3800*H3000mm | Paper Size: | 800*600mm |
| Cardbaord Size: | 750*450mm | ||
| Highlight: | Rigid chocolate box machine,Paper chocolate box machine,Rigid Box Machine 450mm |
||

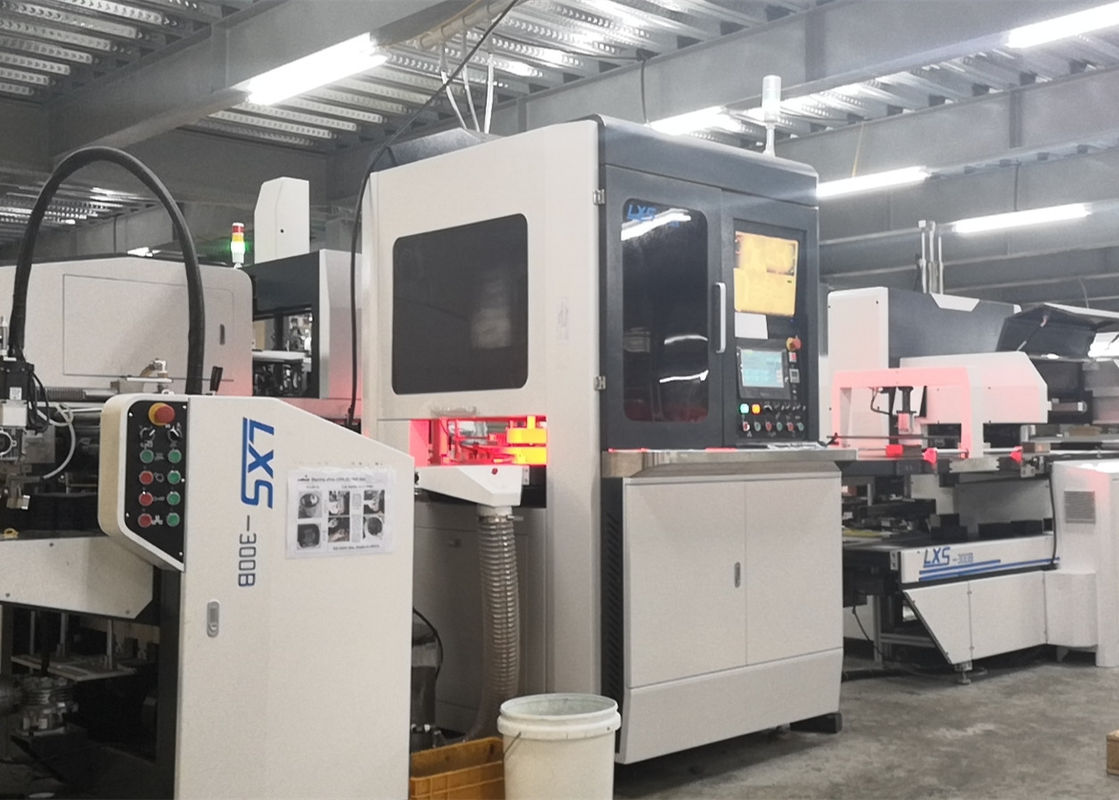

LS-300B Fully Automatic Rigid Chocolate Paper Box making machine for chocolate box
The whole machine is divided into several independent parts, the surface of each part is covered with plastic film to prevent dust and rain from entering, and then the machine is put into a suitable wooden box to prevent the machine from moisture and rust.
LS-300B in the transportation process, is divided into a number of different parts for packaging.
After delivery to the destination, the parts are assembled into a complete production line.
| Type | LS-300B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L80-400mm |
| Box size(width) | W60-300mm |
| Box size(height) | H15-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-35 pcs/min |
| Motor power | 14kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3750kg |
| Machine dimension | L6600*W3800*H3000mm |
Visual camera
Box picking system
Machine frame
box positioning accurately and quickly
Low after-sales services and repairing fee
No need to move cameras when product size changing. Save time for setting
