Product Details:
|
| Quantity Of Groove At A Time: | 4/Slots | Working Speed: | 35m/min |
|---|---|---|---|
| Max Size: | 600*600mm | Min Size: | 140*120mm |
| Carton Paper Thickness: | 500-800g/m² | Cardboard Thickness: | 0.8~4mm |
| Motor Power: | 5kw/ 380v 3 Phase | ||
| Highlight: | Board Grooving Machine 4Slots,Board Grooving Machine 4Slots,Dual Direction Automatic Grooving Machine |
||

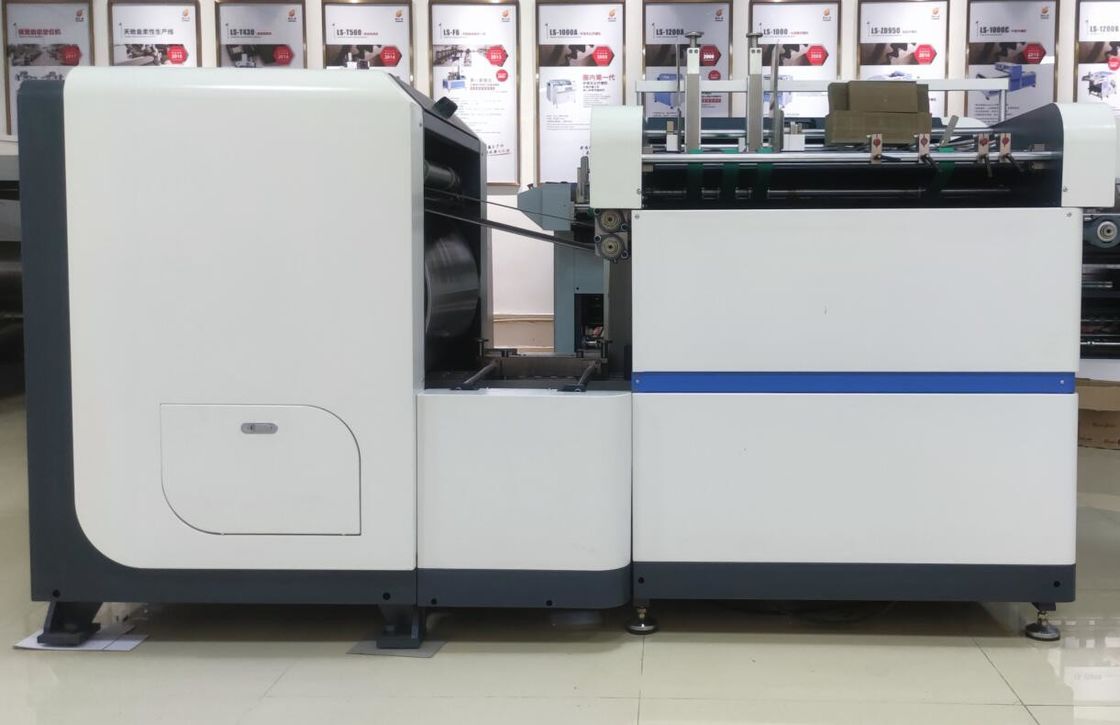

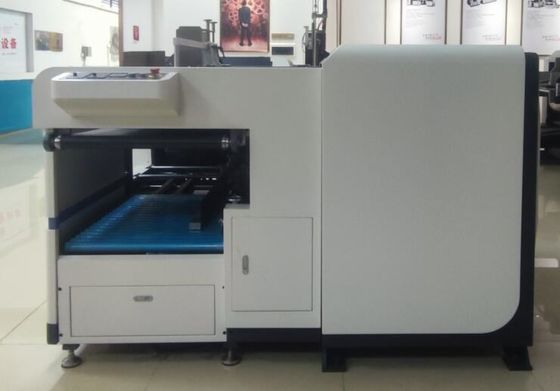

LS-1200C Automatic Dual-direction Grooving Machine
This model is our new research mahcine in our company. It can handle cardboard. It also can groove two directions of cardboard which be finished at one time. Equipped with special knife grinder,easy operating and setting. We can groove cardboard 30m/min.
The LS-1200C is in the first step of rigid box making, which are core to the products appearances.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High efficiency: The speed of manual feeding can be 15000pcs/8 hours.(20×20cm).
4) High accuracy of grooving: This machine applies new conveying system, the belt will conveyor the cardboard into the grooving section by pressing the cardboard against a drum with 60cm in diameter, which ensure the high accuracy and high speed.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
| Product name | Automatic Dual-direction Grooving Machine | ||
|
Type
|
LS-1200C
|
||
|
Quantity of groove at time
|
4 slots
|
||
|
Working speed
|
35m/min
|
||
|
Cardboard specification
|
140*120-600*600mm
|
||
|
Cardboard thickness
|
1~4mm
|
||
|
Motor power
|
4kw/380v
|
||
|
Machine dimension
|
L2680*W2600*H1350mm
|
||
|
Groove angle
|
80°-140°
|
||
|
Machine weight
|
1500kg
|
Result of grooving cardboard
Grooved cardboard and die cutting cardboard
Longxingjian Intellighent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q4: Are you a factory or a trading company?
A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q5: Where is your main market?
A5: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
