Product Details:
|
| Product Name: | Hardcover Paper And Box Paper Gluing Machine Which Can Use Hot Melt Glue And Cold Glue | Application: | Rigid Box Paper Gluing |
|---|---|---|---|
| Colour: | Black & White & Yellow | Dimension(L*W*H):: | L5981*W3182*H2113mm |
| Weight Of Machine: | 2112kg | Working Speed: | 15-34pcs/min |
| Highlight: | Hot Melt glue Paper Gluing Machine,Paper Gluing Machine 34pcs/Min,Cold Glue Hardcover Machine |
||

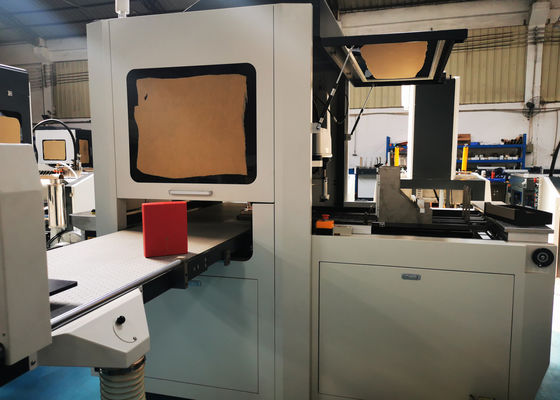

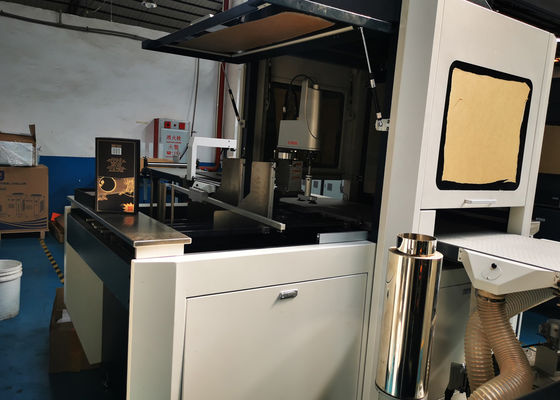

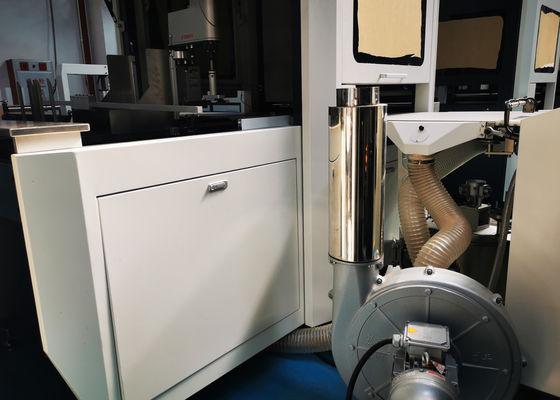

Hardcover Paper And Box Paper Gluing Machine Which Can Use Hot Melt Glue And Cold Glue
Introduction:
Paper Gluing Machine For Gluing Rigid Box And Hardcover With Hot Melt Glue And Cold Glue, this machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
Box clamping motor
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006. As a packaging technology company, we own 120 workers, more than 10 years experience, ISO & CE certificated, less than two hours reach Guangzhou or Shenzhen port, this is how we keep good quality and competitive prices for global valued customers.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Details discussion.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
