Product Details:
|
| Name: | High Efficiency Automatic Rigid Confectionery Box Corner Pasting Machine For Phone Box Making | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Warranty: | 1 Year |
| Working Speed: | <75 Pcs/min | Driven Type: | Electric & Pneumatic |
| Dimension(L*W*H):: | L1650*W1300*H1960mm | Weight Of Machine: | 920kg |
| Automatic Grade: | Automatic | ||
| Highlight: | 920kg Box Corner Pasting Machine,Confectionery Box Corner Pasting Machine |
||
High Efficiency Automatic Rigid Confectionery Box Corner Pasting Machine For Phone Box Making
Introduction:

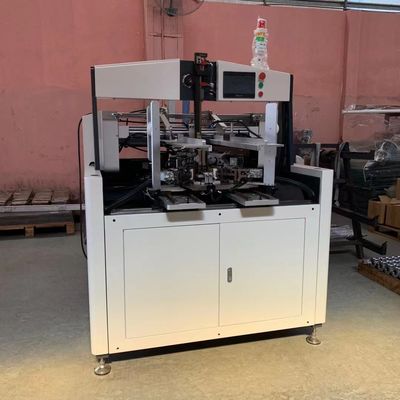

LS-T430 Automatic Craft Tape Four Corner Pasting Machine For Rigid Box Making is applied to pasting the four corners of die cutting cardboard and v-slots grooving cardboard. This machine use belt feeding way to convey coardboard to punching area. Shorten feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The max working speed is 75 pcs/min, it able to paste normal rigid box and slant side box, paste twice for high box. Whole machine is 1650*1300*1960mm. Small and easy to be movement. It is suitable to combine with semi-automatic rigid box making line.

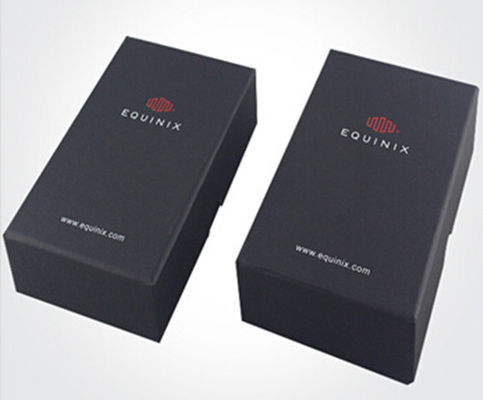

The Full automatic Corner Pasting Machine adopts PLC programmable controller, touch screen man-machine interface, automatic function parameter setting and the fault display,improve the production efficiency. Suitable for all kinds of paper box, such as cell phone box,gift box, tea box and etc.
| Type | LS-T430 |
| Box size (Max) | L600*W400*H120mm |
| Box size (Min) | L80*W65*H15mm |
| Max cardboard size | L700*W500mm |
| Min cardboard size | L100*W80mm |
| Working speed | <75 pcs/min |
| Motor power / voltage | 2kw/380V |
| Air supply | 10L/min 0.6Mpa |
| Machine dimension | L1650*W1300*H1960mm |
| Weight of machine | 920kg |
Our service:
1. Your inquiry related to our product & price will be replied within 24 hours
2. Well-trained & experienced staff are to answer all your inquiries in English
3. Working time: 8:00am ~18:00pm, Monday to Saturday. (UTC+8)
4. Customized solution & perfect after-sale service
5. For large order, engineer can be sent to your country for on-site mainternace instructions.
6. Our advantage: A.Competitive price. B.Good quality. C.Timely delivery. D. New model launch yearly.
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006. As a packaging technology company, we own 120 workers, more than 10 years experience, ISO & CE certificated, less than two hours reach Guangzhou or Shenzhen port, this is how we keep good quality and competitive prices for global valued customers.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
