Product Details:
|
| Product Name: | Automatic Case Making Machine For Wine Box Case, Book Shape Box Case And Cell Phone Box | Colour: | Black & White & Grey |
|---|---|---|---|
| Dimension(L*W*H):: | L5982*W3188*H2111 | Automatic Grade: | Automatic Case Making Machine |
| Condition: | New | Weight: | 2101kg |
| Highlight: | W3188mm Automatic Case Making Machine,Book Shape Automatic Case Making Machine,ISO9001 back cover making machine |
||

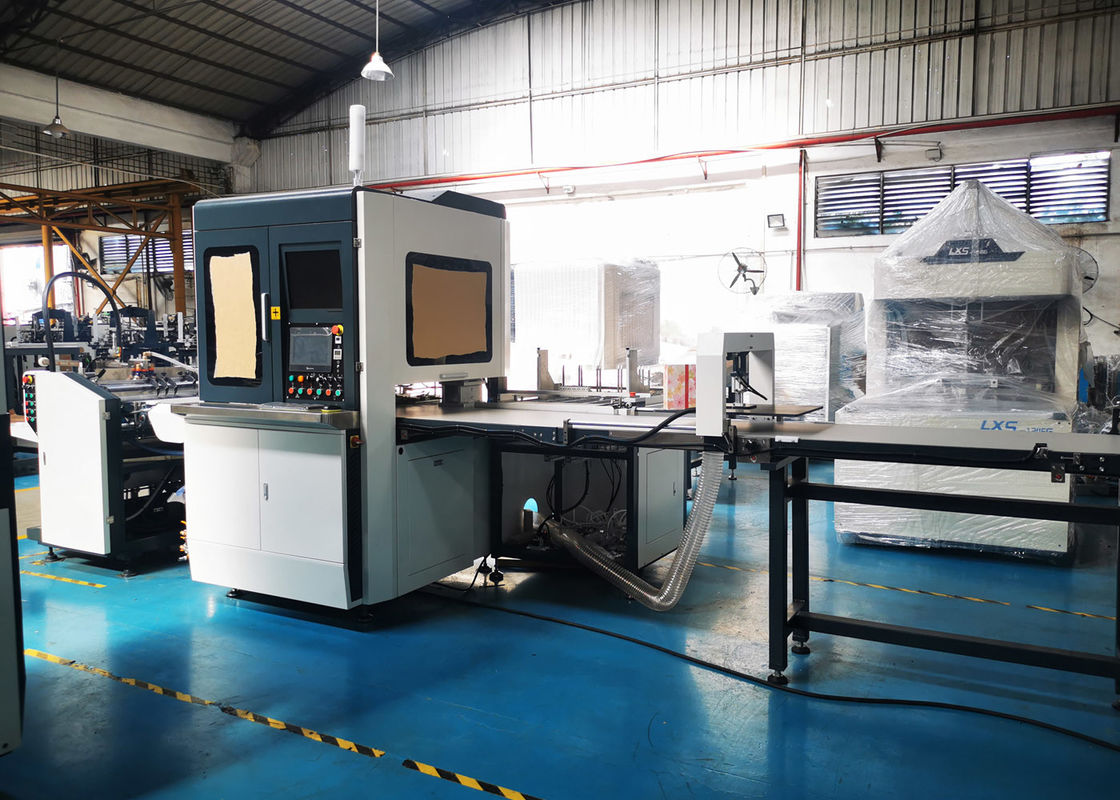

Automatic Case Making Machine For Hardcover, Book Cover, Case, Etc
Introduction:
Automatic Case Making Machine For Hardcover, Book Cover, Case, Etc. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting case/ hardcover on the glued paper automatically, which is widely used for rigid box making, book cover making, paper lining and even album, game board making.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
Positioning part introduction:
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
