Product Details:
|
| Product Name: | Automatic Case Making Machine For Game Board, Hardcover, Moon Cake Box Sheet Etc | Dimension(L*W*H):: | L5984*W3188*H2115 |
|---|---|---|---|
| Automatic Grade: | Automatic Book Cover Making Machine | Condition: | New |
| Weight: | 2117kg | Application Area: | Game Board Positioning Machine |
| Highlight: | Game board Automatic Case Making Machine,H2115mm Automatic Case Making Machine,Game board mobile back cover manufacturing machine |
||

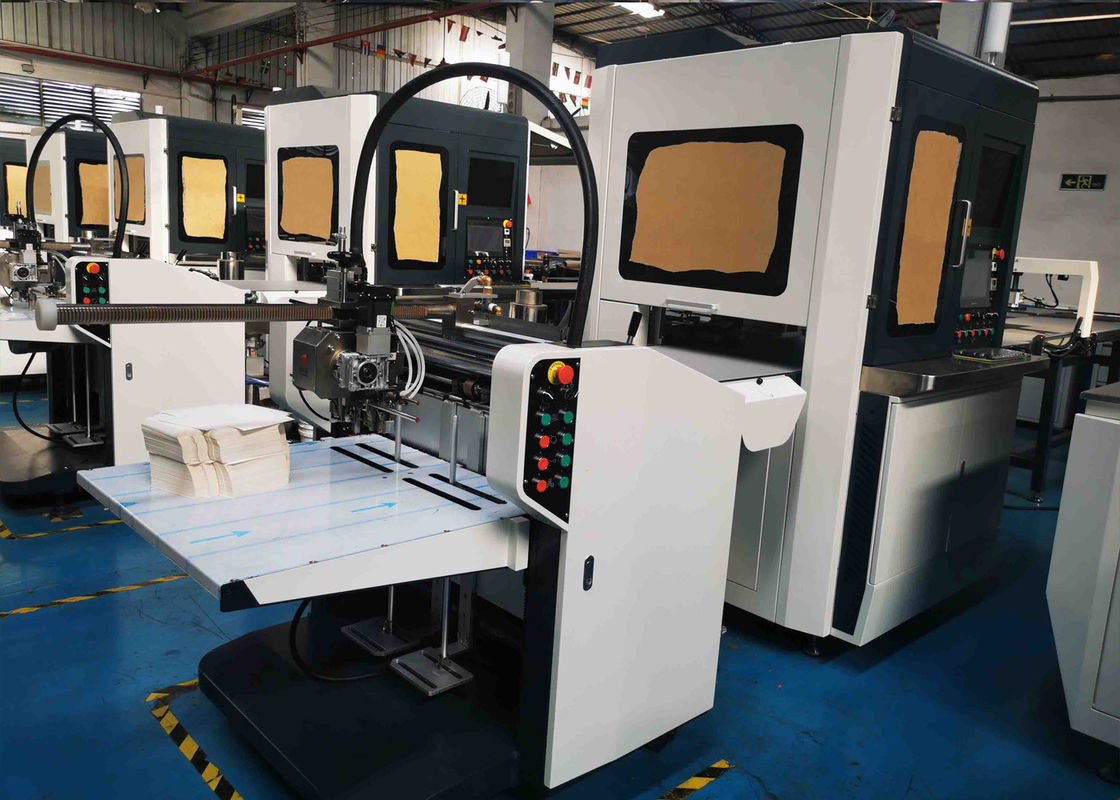

Automatic Case Making Machine For Game Board, Hardcover, Moon Cake Box Sheet Etc
Introduction:
Automatic Case Making Machine For Game Board, Hardcover, Moon Cake Box Sheet Etc. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting case/ hardcover on the glued paper automatically, which is widely used for rigid box making, book cover making, paper lining and even album, game board making.
The case is sensed by the hardcover induction eye. When the hardcover can not be sensed, the motor starts up. The belt drives the movement of the "hardcover knife bar" and the "blade" to send the hardcover to the position where the manipulator grasps the hardcover (that is, the position where the hardcover is sensed by the induction eye). The motor reverses until the "hardcover knife bar" returns to its original position.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
