Product Details:
|
| Product Name: | Jewelry Box Air Pressing Machine For Removing Bubbles To Make Premium Boxes | Max Box Type: | L450*W350*H150mm |
|---|---|---|---|
| Min Box Type: | L76*W60*H20mm | Working Speed: | Up To 29 Pcs/min |
| Voltage: | 0.7kw/220v | Air Supply: | 10L/min 0.7MPa |
| Machine Dimension: | L1360*W1070*H2000mm | Machine Weight: | 420kg |
| Highlight: | jewelry Box Pressing Machine,Box Pressing Machine 10L/Min |
||

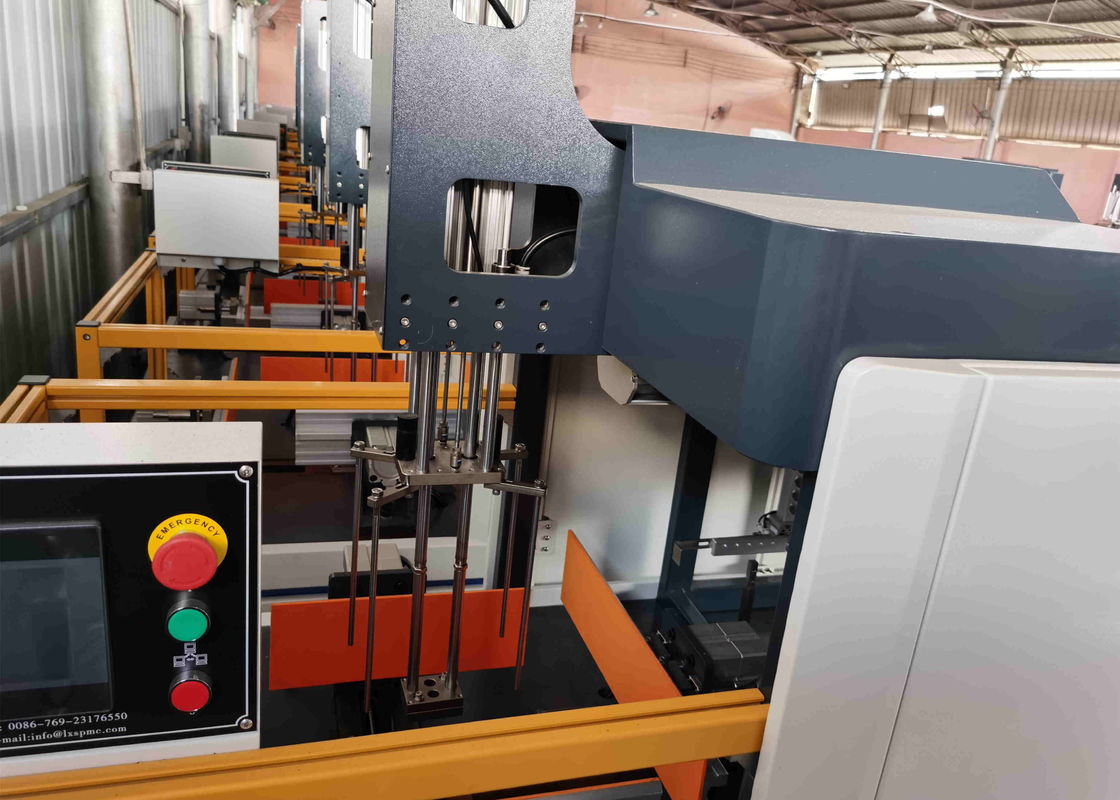

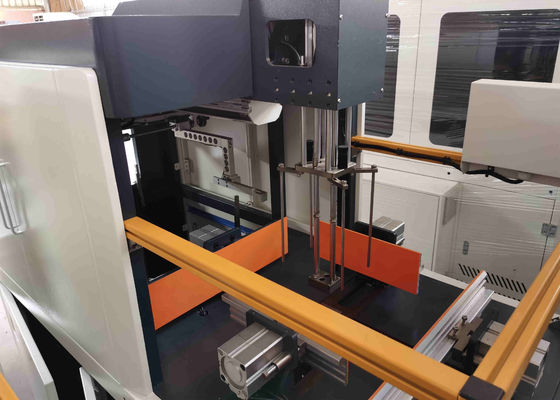

Jewelry Box Air Pressing Machine For Removing Bubbles To Make Premium Boxes
This machine is ideal automatic high speed grooving machine which is widely applied on hardcover,setup box and gift box v grooving. It can promote the product’s quality, appearance and make products more high-end.
This product uses bubble extrusion on the side of the box. It can automatically press 5 surfaces, thus realizing high efficiency, high precision, high return and low cost. This machine is simple to operate, easy to debug, is the most ideal slotting equipment. Thank you for your choice and use.
Machine Movement
Use lifting tools or forklift to unload the machine, fork into the machine base which is between ground and foundation bolt. Taking any other ways to move the equipment is not allowed.
Use skid proof material in the lifting area to avoid machine damage.
In the movement, the machine shouldn’t be crashed, knocked or accelerated dropped.
Setting
Keep the machine balance in the same level, then fasten the foundation bolt. Check machine balance.
| Type | LS-ATYP-5 |
| Max box type | L450*W350*H130mm |
| Min box type | L75*W70*H20mm |
| Working speed | Up to 25pcs/min |
| Voltage | 0.5kw/220v |
| Air supply | 10L/min 0,6MPa |
| Machine dimension | L1350*W1100*H1950mm |
| Machine weight | 430kg |
About our company
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in the famousmanufacturing city - Dongguan City,China. Our former company name is Dongguan Longxingsheng machinery CO.,Ltd. We are the leader & professional manufacturer of Automatic/semi-auto rigid box maker which is for for making varies rigidbox ,such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes,shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc. Our company has been established since 2006.With years experience of machinery's development,manufacturing & selling,our products are with high quality & enjoy very good reputation in global market,especially in Europe,Asia,Mid-east and America. We are much appreciated & treasure our customers' trusting & supporting, and we will always keeping providing high quality products & good after-sales service to you.
Daily maintenance
Clean up the machine everyday as appropriate. When cleaning the machine,please use vacuum cleaner or clean rags. Apply some cleanser on the clean rags to remove the dirty spot and scrub the machine.
Machine maintenance personnel must have a professional level, maintenance personnel for equipment maintenance, must cut off all the power supply equipment.
Routine maintenance
Cleaning
Machine cleaning cycle should be once per shift (8 hours), can be arranged according to the actual situation.
When cleaning the outside of the machine, it is recommended to use a vacuum cleaner or a clean cloth; If there are dirty parts, you can use alcohol or odourless , non-foam solution of scale remover to drop on a clean cloth to wipe the equipment.
