Product Details:
|
| Products Name: | Automatic Smart Packaging Rigid Commerical Box Making Machine Cardboard Box Maker Phone Box Wrapping System | Max Cardboard Size: | L760*W560mm |
|---|---|---|---|
| Min Cardboard Size: | L120*W100mm | Box Length: | 80-600mm |
| Box Width: | 65-400mm | Working Speed: | 15-25 Pcs/min |
| Heating Power: | 7 Kw | Air Pressure: | 45 L/min 0.8 Mpa |
| Highlight: | 350g/m2 Paper Box Packing Machine,80g/m2 Paper Box Packing Machine,350g/m2 Paper Box Packaging Machine |
||
The paper box positioned by the positioning machine can be more firmly bonded to the paper box through the box pressing mechanism, reducing the separation of the paper box and the paper box during the forming part of the box or the box.

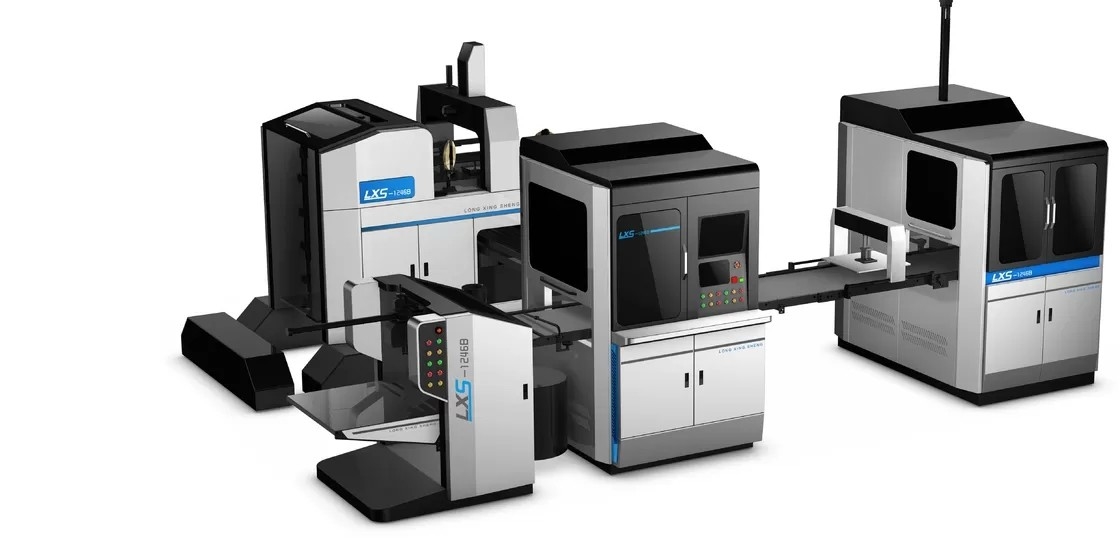

LS-1246B Automatic smart rigid box making machine is an ideal machine for customer who has changable orders. It including the box corner pasting, paper feeding&gluing, box feeding&positioning, box wraping and air pressing at one time.
The LS-1246B is best choice for rigid box, gift box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |

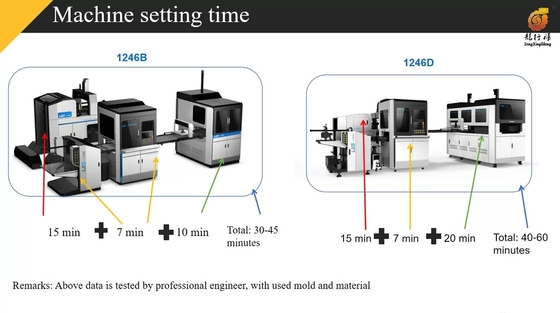

Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
